DAHUA DH-PFM350-360-A - UPS de 600VA/360W/ Línea Interactiva/ Entrada y Salida de 110 VCA +-10%/ Estabilizador de Voltaje AVR/ Diseño Compacto/
- SKU DH-PFM350-360-A
- Categoria CCTV Industrial > Fuentes de Energía > Reguladores y UPS
General Information

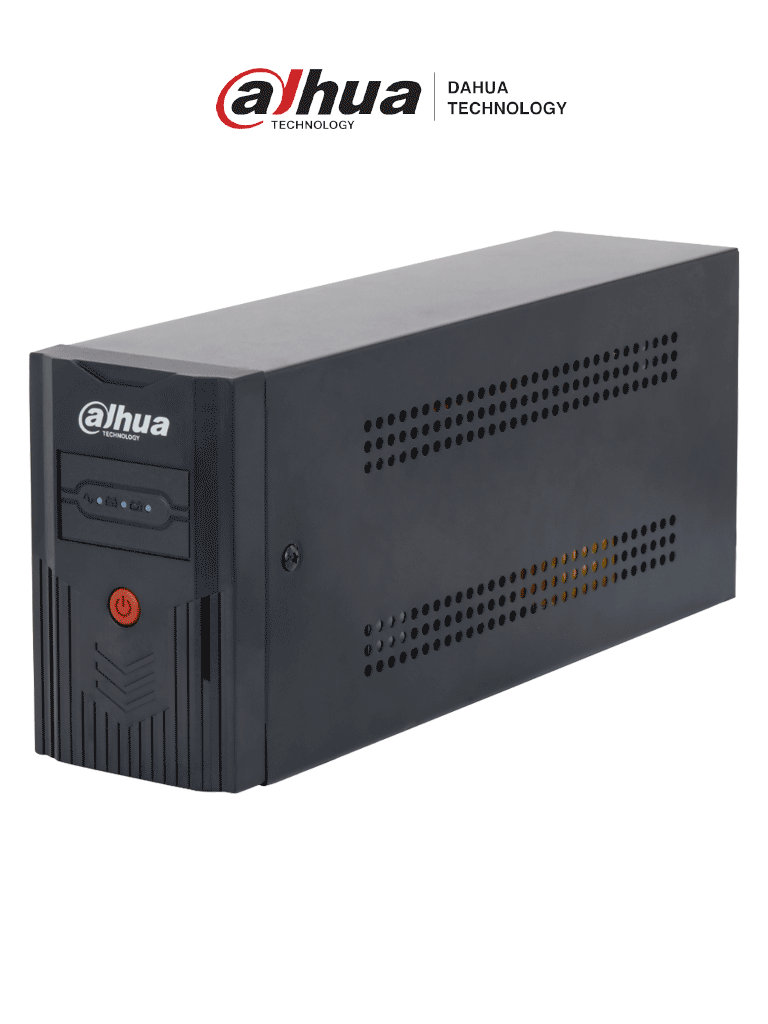

The DAHUA DH-PFM350-360-A is a 600VA/360W UPS that protects equipment against power outages and fluctuations. It operates between 110-120 Vac and has an AVR voltage stabilizer. Its compact design makes it ideal for offices, homes, and small businesses, ensuring continuity and protection for critical electronic devices.
Main Features
- Voltage Range: Varies between 90 and 140 V.
- AVR: Ensures stable voltage output.
- Functionality: Supports charging and cold start even when the device is off.
- Protection: Protects itself when overloaded, deeply discharged, or overcharged.
- Modes: Supports automatic switching to power supply modes in case of a power outage, overvoltage, or undervoltage, ensuring stable voltage output.
Technical Specifications
- Capacity: 600VA
- Input Voltage: 90–140 VAC
- Input Current: 3.5 A
- Nominal Input Frequency: 50/60Hz
- Dimensions: 335 mm ×87 mm ×143 mm
- Material: Steel and plastic
- Weight: 4.4 kg
- Operating Temperature: 0°C-40°C (32°F to 104°F)
- Operating Humidity: 0–90% relative humidity
Includes
- 1x UPS DH-PFM350-360-A
- 1x User Manual
- 1x Warranty Policy
Frequently Asked Questions
What is the capacity of this UPS?
The capacity of the DAHUA DH-PFM350-360-A is 600VA/360W.
What kind of protection does this UPS offer?
This UPS offers protection against power interruptions and voltage fluctuations, including blackouts, sags, and surges.
What input and output voltage range does it handle?
It handles an input and output voltage range of 110 Vac to 120 Vac.
Download Data Sheets/Manuals
