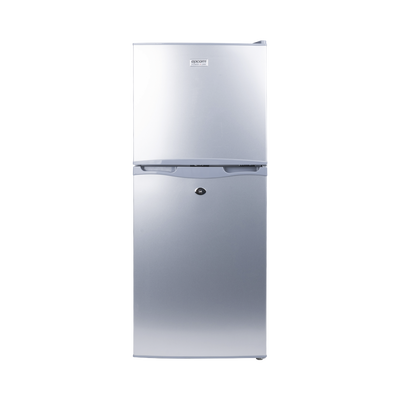

Solar 105L (3.7 ft3) Combination Refrigerator - 12/24V, All-in-one Solution for Off-Grid Applications and Energy Efficiency.
- SKU BCD-105V2
- Categoria Energía / Herramientas > Climatización / Refrigeración > Boilers / Refrigeradores / Congeladores
Our 105L solar combined refrigerator is an all-in-one solution for off-grid applications. It operates on 12 or 24 Vdc, eliminating the need for an inverter and reducing system costs and potential failures. It offers a compact design, energy savings, and compatibility with variable voltage systems.
IMPORTANT
When a refrigerator arrives by parcel, it is crucial to let it rest before connecting it to prevent damage to the compressor and the refrigeration system. This is because, during transport, the internal oil can shift towards the pipes.
Recommended resting times:
- Minimum 4 hours if the refrigerator is transported or received in an upright position.
- Up to 24 hours if the refrigerator was tilted during transport, subjected to abrupt movements, or if it is received lying down.
Technical specifications
- Input Voltage: 12/24 Vdc
- Capacity (total): 105 L (3.7 ft3)
- Capacity (refrigerator): 70 L
- Capacity (freezer): 35 L
- Consumption: 65 W
- Temperature range (refrigerator): 0 - 10 °C
- Temperature range (freezer): >-18 °C
- Refrigerant: R600a
- Dimensions: 454 x 460 x 1122 mm
- Weight: 31 kg
12 Vdc connection diagram (power system NOT included)
24 Vdc connection diagram
* The diagrams are representative; to define the capacity of the PV array and the battery bank, it is necessary to perform an adequate sizing for each area. For more information, please contact the engineering department.
Maintenance
Since the refrigerator generates frost, it is recommended to perform maintenance to eliminate frost inside the refrigerator at least every 15 days to avoid poor equipment performance.
