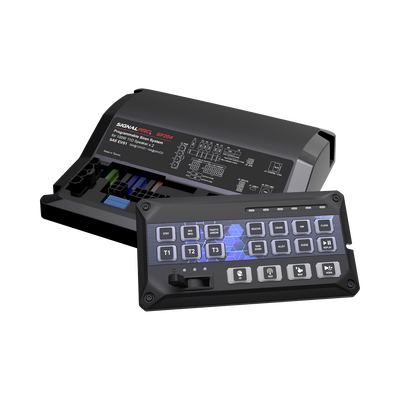

Sirena vehicular de 200W de potencia, con controlador de panel deslizante de 19 botones, indicador de flecha de tráfico de 6 LED, 12 salidas auxiliares
Sirena vehicular de 200W de potencia, con controlador de panel deslizante de 19 botones, indicador de flecha de tráfico de 6 LED, 12 salidas auxiliares
Disponible:
En Stock
- SKU SP204R
- Categoria IoT / GPS / Telemática y Señalización Audiovisual > Sirenas / Bocinas y Controladores Vehiculares > Sirenas
$ 6,096.55 MXN
The SP204R Siren is specially designed with advanced technology, providing excellent sound quality, suitable for installation in any type of emergency vehicle, especially Public Security vehicles. Its single-lever controller makes it unique for making communication and security control easier directly from the siren itself.
Main Features
- Fully programmable/customizable via PC software
- Button and input style: sustained, momentary, timed, etc.
- Microphone included
- Interconnection button, interlocking and output port
- Tone selection: Primary, Override, Mixed, Hands-free
- Multiple pulse function
- 19-button slide panel controller, 6 LED traffic arrow indicator
- Power magnet mounting mechanism
Technical Features
- 12 Relay Outputs: (3) 15A, (3) 10A, (2) 2A, (4) 0.25A and (1) dry contact relay output
- 4 positive or negative activated logic inputs and 1 variable voltage analog input
- Low amperage Class D amplifier produces incredibly clean, crisp tone and HIGH output when paired with the SP100 speaker
- 200W amplifier supports one or two 100W speakers (11 Ohm)
- 2 backlight modes (normal and covert)
- Selectable tones: Wail, Yelp, Phaser/Piercer, Hi-Lo, Mechanical, European tones, etc.
- Heavy-duty power and output connector blocks with easy access fuses
- Radio RE-Broadcast (RRB) for audio playback
- Record-n-Play: Records instantly playable messages (up to 20 seconds)
- 'Mix Tone' function allows a multi-tone/multi-speaker effect
- Voltage detection: Programmable for automatic low voltage connection
General Specifications
- Compliance: SAE J1849 EVS1; ECE R10; CISPR 25
- Input Voltage: 12 ~ 24 VCD
- Microphone included
- Standby Current: 0 mA (without IGN cable) / <0.35 A (with IGN cable) Average Current: 8.5 A @ 12 VCD / 4 A @ 24 VCD
- Max. Current: 20A @ 12VCD / 10A @ 24VCD (without light control outputs) 100A @ 12VCD / 50A @ 24VCD (with light control)
- Siren Output Power: 200 W (11 W speaker x2) 11 ohms Siren Output Load: 100 W-ACR 11 ohms
- Siren Frequency: varies by tone
- Operating Temperature: 86°F to 149°F
Additional Specifications
- I/O: Power, IGN (ignition), Speaker Output x2, High Current Output x3, Medium/Low Current Output x9, Logic Input x4, Variable Voltage Analog Input x1, Radio Audio Input, TRS Microphone (optional), Controller Port, PC Link USB Port
- Light Controls: (3) 15 A, (3) 10 A, (2) 2 A, (4) 0.25 A light control outputs
- Fuse Ratings: Blade Fuse: (1) 30 A, (3) 15 A, (3) 10 A, (2) 2 A
- Resettable Fuse: (4) 0.25 A
- Cable Lengths: 5 Harness Cables of 300 mm (30 cm)
- Extension Cable: 333 mm (33.3 cm)
- Warranty: 5 years
- Dimensions: 217 mm (Length) x 190 mm (Width) x 45.6 mm (Height)
The SP204R Siren is specially designed with advanced technology, providing excellent sound quality, suitable for installation in any type of emergency vehicle, especially Public Security vehicles. Its single-lever controller makes it unique for making communication and security control easier directly from the siren itself.
Main Features
- Fully programmable/customizable via PC software
- Button and input style: sustained, momentary, timed, etc.
- Microphone included
- Interconnection button, interlocking and output port
- Tone selection: Primary, Override, Mixed, Hands-free
- Multiple pulse function
- 19-button slide panel controller, 6 LED traffic arrow indicator
- Power magnet mounting mechanism
Technical Features
- 12 Relay Outputs: (3) 15A, (3) 10A, (2) 2A, (4) 0.25A and (1) dry contact relay output
- 4 positive or negative activated logic inputs and 1 variable voltage analog input
- Low amperage Class D amplifier produces incredibly clean, crisp tone and HIGH output when paired with the SP100 speaker
- 200W amplifier supports one or two 100W speakers (11 Ohm)
- 2 backlight modes (normal and covert)
- Selectable tones: Wail, Yelp, Phaser/Piercer, Hi-Lo, Mechanical, European tones, etc.
- Heavy-duty power and output connector blocks with easy access fuses
- Radio RE-Broadcast (RRB) for audio playback
- Record-n-Play: Records instantly playable messages (up to 20 seconds)
- 'Mix Tone' function allows a multi-tone/multi-speaker effect
- Voltage detection: Programmable for automatic low voltage connection
General Specifications
- Compliance: SAE J1849 EVS1; ECE R10; CISPR 25
- Input Voltage: 12 ~ 24 VCD
- Microphone included
- Standby Current: 0 mA (without IGN cable) / <0.35 A (with IGN cable) Average Current: 8.5 A @ 12 VCD / 4 A @ 24 VCD
- Max. Current: 20A @ 12VCD / 10A @ 24VCD (without light control outputs) 100A @ 12VCD / 50A @ 24VCD (with light control)
- Siren Output Power: 200 W (11 W speaker x2) 11 ohms Siren Output Load: 100 W-ACR 11 ohms
- Siren Frequency: varies by tone
- Operating Temperature: 86°F to 149°F
Additional Specifications
- I/O: Power, IGN (ignition), Speaker Output x2, High Current Output x3, Medium/Low Current Output x9, Logic Input x4, Variable Voltage Analog Input x1, Radio Audio Input, TRS Microphone (optional), Controller Port, PC Link USB Port
- Light Controls: (3) 15 A, (3) 10 A, (2) 2 A, (4) 0.25 A light control outputs
- Fuse Ratings: Blade Fuse: (1) 30 A, (3) 15 A, (3) 10 A, (2) 2 A
- Resettable Fuse: (4) 0.25 A
- Cable Lengths: 5 Harness Cables of 300 mm (30 cm)
- Extension Cable: 333 mm (33.3 cm)
- Warranty: 5 years
- Dimensions: 217 mm (Length) x 190 mm (Width) x 45.6 mm (Height)
