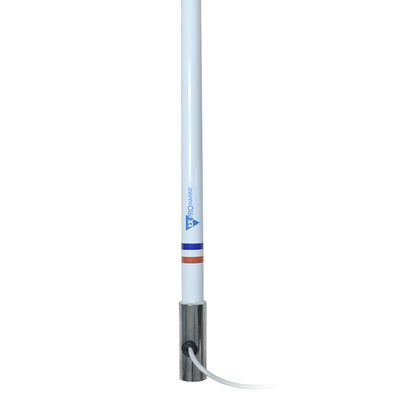

Antena VHF marina de fibra de vidrio con base de acero inoxidable en el rango de 156 a 163 MHz. Incluye 10 metros de cable y conector PL-259 macho.
Review: 5 -
Rated 5/5 based on 11 customer reviews
"Excelentes productos" by , written onJun 4, 2021
Los productos siempre en tiempo y forma.
Vigilancianetwork 1

Antena VHF marina de fibra de vidrio con base de acero inoxidable en el rango de 156 a 163 MHz. Incluye 10 metros de cable y conector PL-259 macho.

Disponible: En Stock
$ 988.19 MXN

VHF Marine Antenna

  • Made of high-strength white fiberglass
  • 2.4 m vertical length
  • Omnidirectional RF propagation
  • Includes PL259 connector, not installed
  • 10 m RG-58 cable length
  • Stainless steel threaded base with 1 1/4 connector
Technical Specifications
  • Frequency Range (MHz): 156-163
  • Impedance (ohm): 50
  • Gain (dBi): 6
  • Polarization: Vertical
  • Radiation: Omni
  • VSWR: ≤1.5
  • Horizontal Beamwidth: 360º
  • Vertical Beamwidth: 57º
  • Maximum Power Input (W): 50

Download the datasheet here

VHF Marine Antenna

  • Made of high-strength white fiberglass
  • 2.4 m vertical length
  • Omnidirectional RF propagation
  • Includes PL259 connector, not installed
  • 10 m RG-58 cable length
  • Stainless steel threaded base with 1 1/4 connector
 Technical Specifications
  • Frequency Range (MHz): 156-163
  • Impedance (ohm): 50
  • Gain (dBi): 6
  • Polarization: Vertical
  • Radiation: Omni
  • VSWR: ≤1.5
  • Horizontal Beamwidth: 360º
  • Vertical Beamwidth: 57º
  • Maximum Power Input (W): 50

Download the datasheet here
