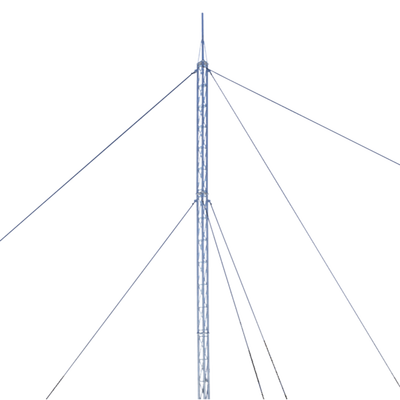

Kit de Torre Arriostrada de Techo de 15 m con Tramo STZ30 Galvanizado Electrolítico (No incluye retenida).
- SKU KTZ-30E-015P
- Categoria Redes e IT > Torres y Mástiles > Torres Arriostradas (Kits)
Outstanding Features
- Product manufactured under ISO 9001:2015 standards.
- Great elevation / Low cost.
- 100% Section-by-Section Assembly Inspection.
- Electroplated Galvanization according to ASTM B-633 standard.
- Ideal for dry areas free of corrosion.
Physical Characteristics
- Maximum Axial Load: 200 Kg.
- Height: 15 meters (5 sections).
- Wind resistance: 200 km/hr.
- Corrosion protection: Electrolytic Galvanization (AST B-633).
- Application: Outdoors (Desert areas or low humidity)
Includes the following components
| Quantity | Model | Description |
|---|---|---|
| 5 | STZ30 | 30 cm face width tower section. |
| 1 | SCZ30P | 30 cm tower top with suppressor for lightning rod. |
| 1 | SBA30 | 30 cm tower base. |
| 1 | SAB30 | Anchor for tower base. |
| 3 | SJB30 | Guy wire clamping flange. |
| 3 | SAP01 | Slab or wall anchor for Guy wire. |
| 18 | CUELLO-14-HDG | Guy wire collar |
| 54 | NUDO-316-FJG | 3/16' Dog-type clamp. |
Guy wire not included. 160 meters of 1/8' guy wire (SRET-318-CAM) or larger diameters are recommended.
Turnbuckles not included. 9 turnbuckles 1/2' x 6' are recommended. (TEN1/2X6OGJ or TEN1/2X6OQJ).
**Failure to use installation accessories such as Flanges, Tower base, Tower anchor or Guy wire anchors will result in a loss of equipment warranty and any additional adaptation is the responsibility of the installer.**
Complementary accessories (Not included)
Signaling/Lighting System (Not included)
| Quantity | Model | Description |
|---|---|---|
| 2 | EIGSLSE | Self-contained LED strobe light with photocell, solar panel and battery. Type L810. |
| 2 | HLU3R2 | Mount for obstruction light EIGSLSE |
*The signaling standard dictates that the tower must be painted in 7 stripes of equal size; 4 stripes in reddish-orange and 3 in white.
Lifeline system (Not included)
| Quantity | Model | Description |
|---|---|---|
| 1 | SHE-LV | Pair of fastening hardware |
| 1 | S-GULV | Line guide |
| 18 | SRET-338CAM | 3/8' cable |
| 6 | NUDO-38FJG | 3/8' Forged knot. |
| 2 | CUELLO-38-HDG | 3/8' Collar. |
| 1 | TRY-ACC-SLIDER | (Optional) Safety Trolley for Installer. |
| 1 | SYS-USA7B | (Optional) Suspension Harness. |
*NOM-009 mandates the use of systems that prevent accidental falls in a structure.
New! Lightning Rod + Grounding Kit with Cable (Not included)
KLP-TZ15-PRO - All-inclusive! Ideal for 15 m towers with crown dipole, wiring and electrodes with.
Or you can also quote the following grounding or lightning rod components individually:
Recommended Grounding System for Tower and Equipment mounted on it (Not included)
| Quantity | Model | Description |
|---|---|---|
| 1 | TG45AB | 45 A grounding electrode with Electrode, Filter and H2Ohm Compound |
| 1 | S610 | Plastic enclosure. |
| 3 | TGCR11 | Eye Connector |
| 2 | TGAB18 | Connector for Rod |
| 1 | TGBUSG10 | Bonding Bar with 1000A Capacity Insulators (Without Enclosure) |
* The use of cal. 4 AWG insulated copper cable (SLY-287-GRN) is recommended for grounding the electrode to the tower. For equipment on the tower, cal. 6 AWG (SLY-291-GRN) can be used.
Basic Lightning Rod System Recommended for Tower (Not included)
| Quantity | Model | Description |
|---|---|---|
| 1 | TGTDPC | Lightning Rod Tip with Aluminum Mast (MASTIL1.2) |
| 1 | TG45AB | 45 Amp Electrode. With a bag of impedance-improving compound (H2OHM), compass and level. |
| 1 | S610 | Small plastic enclosure. |
| 1 | ANTIOX | Aerosol for terminal protection. |
| 3 | TGCR11 | Eye Connector. |
| 2 | TGAB18 | Connector for Rod. |
| 10 | TGAC | Aislador para torre. |
La punta tipo dipolo ofrece un cono de protección de 72° debajo del serpentín. Se recomienda para zonas de baja incidencia de rayos.
Se recomienda cable de cobre calibre 2/0 para realizar la integración (SLY-346-BLK). Considerando una instalación del electrodo a máximo 3 metros de la torre se usan aprox. 8 metros.
Ver diagrama de conexión de Tierra Física + Pararrayo: DIAGRAMA
Recomendaciones
- Asegúrese de que la instalación sea realizada por un profesional capacitado.
- Programe un plan de mantenimiento para revisión de tensiones en retenidas y ajuste de tornillería.
- No instalar paneles solares a más de 6 metros de altura. Revisar la compatibilidad entre celdas solares y montajes.
- Debe de realizarse un estudio de esfuerzos cuando se coloque una carga excéntrica en torre. Ésta puede causar torsión y flexión excesiva en torre causando fallas estructurales.
- La torre debe ser pintada en tono naranja-rojizo y blanco, en 7 franjas de igual altura empezando y terminando en naranja-rojizo (SYSCOM no realiza el trabajo de pintura de la torre).
- Se recomienda iluminar la torre al menos en la punta con una lámpara color rojo.
Diagrama Representativo: Instalación de Retenida Versión 2.0
Imágenes de Instalación
