Server with integrated 3CX IP-PBX with 3 slots for E1, 2G and 3G GSM, FXS/FXO modules, up to 46 channels and supporting up to 128 simultaneous calls

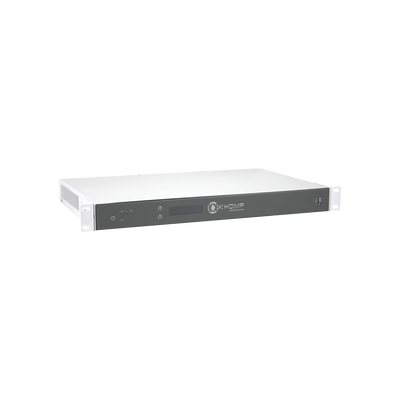

UMG SERVER 300 X is a server with 3CX software pre-installed, only requiring the license, and is integrated by a UMG Modular 300 configurable with different telephony interfaces.

It has the capacity to process up to 46 simultaneous calls, divided into 3 slots for any combination between E1, GSM 2G and 3G, FXO or FXS interfaces.

Features and Advantages of the Built-in Gateway

• Modularity: 3 slots for the desired combination of:
• 1 E1 (30 channels)
• 2 GSM (up to 6 GSM channels), which can be:
  • 2G Quad Band: 850/900/1800/1900 MHz
  • 3G Six Band: 800/850/900/1700/1900/2100 MHz
• 4 FXO (up to 12 FXO)
• 8 FXS (up to 24 FXS)
• Maximum of 46 channels per product
• 2 Giga Ethernet ports
• Connection with up to 2 different VoIP operators
• Up to 10 VoIP accounts
• VoIP channels: 1 SIP channel for each TDM channel, with a maximum of 46 SIP channels in total
• Compatible with G.711 (A-law and μ-law), G.729A and T.38 (fax)

Main Features and Advantages of the Internal Hardware Server

• IPX1800G2 motherboard
• Intel Celeron J1800 Dual Core 2.41 GHz 64-bit processor
• 2 GB of RAM with growth up to 8 GB
• 120 GB SSD
• Full Range AC power supply
• 2 Giga Ethernet ports
• Programmable LED display

Physical and electrical specifications

• Power supply: Input: 100-240V 50/60Hz
• Maximum power consumption: 150W
• Appliance dimensions: 21.1 x 4.5 x 18.2 cm
• Standard 1U module for 19-inch rack

Application model

Performance with IP-PBX 3CX

Tests performed with UMGSERVER300DY and 3CX
MotherBoard IPX 1800 G2
CPU Intel Celeron J1800 Dual Core 2.41GHz 64-bits
Memory 4GB
HD 16GB SSD
Debian 8 - 3CX PRO 15.5.3849.1

Test results

Test 1

• Incoming calls through SIP trunks sent to Ring Groups (256 registered extensions).
• SIP trunk with G711 codec.
• Extensions with G711 Codec.
• Recording all calls.

Result: 150 simultaneous calls

Test 2

• Incoming calls through SIP trunks sent to Ring Groups (128 registered extensions).
• SIP trunk with G711 codec.
• Extensions with G729 Codec.
• Recording all calls.

Result: 64 simultaneous calls
