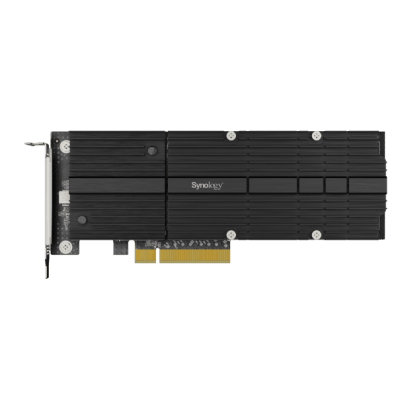

The Synology M2D20 M.2 SSD Adapter is an advanced solution for boosting I/O performance in storage systems. Compatible with M.2 NVMe SSDs in 22110 and 2280 form factors, this adapter accelerates the performance of latency-sensitive applications without occupying drive bays. It's ideal for optimizing storage in Synology systems, especially when used with Synology's SNV3000 series NVMe SSDs.
Key Features
- Compatibility with M.2 NVMe SSDs in 22110 and 2280 form factors
- PCIe 3.0 x8 interface for high performance
- 2 M-Key slots for SSD connection
- Compact design with low profile and full height
- 5-year warranty for peace of mind
Technical Details
Specifications
-
Host Bus Interface: PCIe 3.0 x8
-
Supported Form Factor: M.2 22110/2280
-
Connector Type: M-Key, 2 slots
-
Size: 71.75 mm x 181.9 mm x 15.8 mm
-
Operating Temperature: 0°C to 40°C (32°F to 104°F)
-
Storage Temperature: -20°C to 60°C (-5°F to 140°F)
-
Relative Humidity: 5% to 95% RH
Interfaces and Connectivity
-
Storage Interface: NVMe
-
M.2 NVMe SSD Compatibility: Yes
Applications and Use Cases
Storage Optimization
Ideal for boosting I/O performance in Synology storage systems, especially for latency-sensitive applications.
Capacity Expansion
Allows the installation of M.2 NVMe SSDs without occupying drive bays, maximizing storage capacity.
Application Acceleration
Improves the performance of critical applications and reduces response times in business environments.
Download the technical sheet here
