Ajax WaterStop B- Válvula inteligente de cierre de agua de 3/4 de pulgada / Color Negro
- SKU Ajax WaterStop [3/4]
General Information
Description

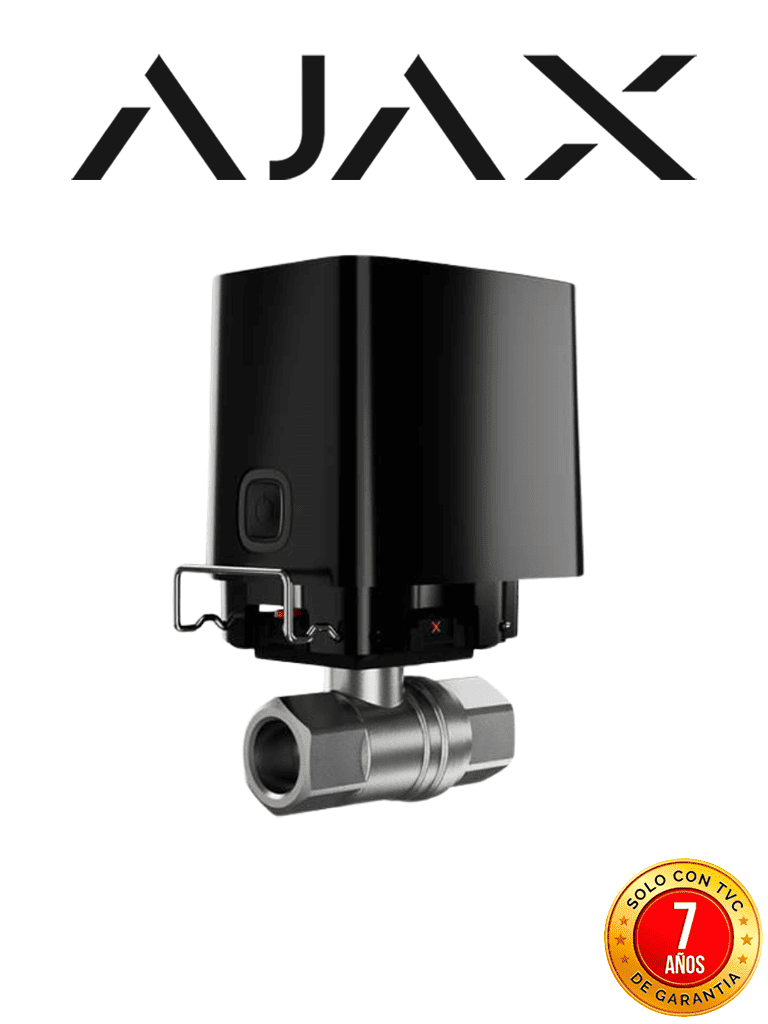

WaterStop is a wireless smart valve (Jeweller) that automatically shuts off water in 5 seconds in an installation with an Ajax security system, triggered by a LeaksProtect (AJX1180010) alarm or a third-party flood detector; you can also program scenarios for scheduled closing, closing upon arming the system, and more. The device combines a high-quality valve and a powerful electric actuator. You can manage WaterStop and check its status from anywhere in the world: all you need is an internet connection and the Ajax app.
Features
- Hot and cold water
- Valve closure in 5 seconds
- Button and lever for manual closure
- Jeweller communication technology
Compatibility
- Hub 2 Plus
- Hub 2 (4g)
- Hub 2 (2g)
Technical Specifications
- Thread 3/4" (DN 20, 20 mm)
- Power supply: 4 CR123A batteries
- Optional power supply: 7.5 - 12VDC
- Connection and thread type: Cylindrical (parallel) BSP (EN 10226-1, ISO 228) female-female.
- Liquid temperature range: -20°C to 170°C
- Torque: 8.5 N*m
- Dimensions: 104 x 150 x 70mm
