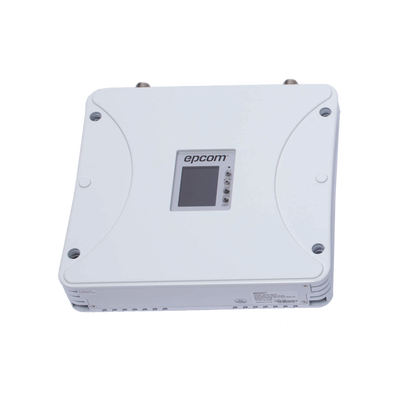

Cell Phone Signal Booster 2G, 3G, 4G & 5G / Improves traditional calls and VoLTE / Amplifies TELCEL, AT&T, MOVISTAR, BAIT, DiRi and more / Covers up to 1200 m² with 4 antennas and low-loss cables.
Review: 5 -
Rated 5/5 based on 11 customer reviews
"Excelentes productos" by , written onJun 4, 2021
Los productos siempre en tiempo y forma.

Cell Phone Signal Booster 2G, 3G, 4G & 5G / Improves traditional calls and VoLTE / Amplifies TELCEL, AT&T, MOVISTAR, BAIT, DiRi and more / Covers up to 1200 m² with 4 antennas and low-loss cables.

Disponible: En Stock
$ 10,448.12 MXN

5-Band Cell Signal Booster

  • Supports multiple users, technologies, operators, and amplifies the signal strength of 5 frequency bands
  • Repeats and amplifies the cellular signal to improve Data transfers for your cellular device's 5G, 4G, and 3G network
  • Reduces dropped and choppy conventional Voice and VoLTE calls
  • Covers 1 to 5 rooms or up to 1200 square meters
  • Increases signal level and extends battery life
  • Supports multiple devices simultaneously
  • Very easy and simple to install
Includes
  • Amplifier
  • Power Supply
Main Specifications
  • Frequency bands it amplifies: 700 MHz, 850 MHz, 1900 MHz, 2100 MHz and 2600 MHz, Bands 28, 5, 2/25, 4/66 and 7 respectively
  • Gain: 70 dB ± 2 dB
  • Output power: 20 dBm ± 2 dBm
  • Consumption: <24W
  • Operating voltage: 12 Vdc, 3A
  • Temperature range: -10°C~+55°C
  • Connectors: N female
  • Impedance: 50 Ohm
  • Amplifier dimensions: 253 x 178 x 59 mm
  • Weight: <2.4 kg
Important Notes
  • Amplifies the 5G network on bands 66 and 7
  • The phone or cellular device must support the 5G network
  • The phone or cellular device interacts between 5G and 4G networks
  • 5G network coverage is very limited
  • Install the amplifier kit according to the user manual or installation guide
  • Use the amplifier kit for its intended purpose
  • If you have questions, contact our Radiocommunication Engineering department
  • Improper installation or misuse of this system can cause interference

Signal measurement application

Application (Network Cell Info Lite) to measure cellular signal strength with Android

You can use a free Android app that allows you to measure the actual cellular signal strength at your location, which is useful for a good amplifier solution. More information here: See support article

Estimated coverage

The amplifier's power depends on the incoming signal.

Accessories

See Optional accessories to complement it to the client's needs or the installation.

Download the technical sheet here
