Barrera Vehicular IZQUIERDA / Compatible con Brazos Iluminados, Telescópicos, Articulados o con Sistema de Abatimiento (No Incluidos) / Motor Brushless de Alto Rendimiento / Semáforo Rojo-Verde en Gabinete / MCBF 2,500,000
- SKU DS-TMG320-LL/B
- Categoria Control de Acceso > Acceso Vehicular > Barreras Vehiculares
Key Features:
- Robust Mechanism for Semi-Intensive Use
- 24 Vdc Brushless Motor
- Red/Green Indicator on the Cabinet
- Includes 2 White Springs Model 190616532
- Includes Coupling Model 190420874
Physical and Electrical Characteristics:
- Selectable 110/220 Vac Power Supply
- Consumption: 152 W
- Operating Temperature: -30 to 70° C
- Dimensions: 1040 x 340 x 298.3 mm
- Weight 37.79 Kg
Outstanding Features:
- Bluetooth configuration with App or traditional direct control panel method.
- Variable opening and closing speed from 3 seconds depending on the arm length and type installed.

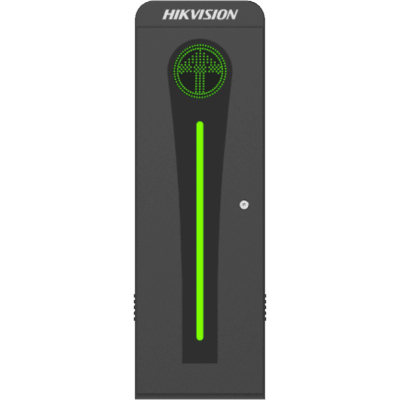

Red / Green Traffic Light in Cabinet
The cabinet design, in addition to being robust and aesthetic, includes a traffic light with color change as a guide for the driver on when to enter and when to stop.
Latest Generation Features
- Brushless Motor guaranteed for 2,500,000 Cycles before any Failure
- Configuration via Bluetooth App and/or Control Panel
- Automatic Closing configurable by Time.
- One Coupling for many arm types.
- Compatible with any Access Control System
- Compatible with photocells, radars and/or magnetic loops.
- Includes 2 Remote Controls
- Model available in Left or Right (different).
- This is a Left Barrier.
- Operation of up to approximately 360 cycles per hour.
5 YEARS WARRANTY
One Barrier Multiple Arm Types
Arm NOT included so you can choose the type of arm you need separately, from straight or articulated arms with lighting to telescopic or anti-collision arms.
* It is necessary to select the type of arm in the barrier configuration and review the compatible necessary accessories specified in the Arm and Accessory Guide below.
Arms from 4 meters onwards require an XB-POST arm rest to prevent premature damage to the mechanism.
Key Features:
- Robust Mechanism for Semi-Intensive Use
- 24 Vdc Brushless Motor
- Red/Green Indicator on the Cabinet
- Includes 2 White Springs Model 190616532
- Includes Coupling Model 190420874
Physical and Electrical Characteristics:
- Selectable 110/220 Vac Power Supply
- Consumption: 152 W
- Operating Temperature: -30 to 70° C
- Dimensions: 1040 x 340 x 298.3 mm
- Weight 37.79 Kg
Outstanding Features:
- Bluetooth configuration with App or traditional direct control panel method.
- Variable opening and closing speed from 3 seconds depending on the arm length and type installed.
Red / Green Traffic Light in Cabinet
The cabinet design, in addition to being robust and aesthetic, includes a traffic light with color change as a guide for the driver on when to enter and when to stop.
Latest Generation Features
- Brushless Motor guaranteed for 2,500,000 Cycles before any Failure
- Configuration via Bluetooth App and/or Control Panel
- Automatic Closing configurable by Time.
- One Coupling for many arm types.
- Compatible with any Access Control System
- Compatible with photocells, radars and/or magnetic loops.
- Includes 2 Remote Controls
- Model available in Left or Right (different).
- This is a Left Barrier.
- Operation of up to approximately 360 cycles per hour.
5 YEARS WARRANTY
One Barrier Multiple Arm Types
Arm NOT included so you can choose the type of arm you need separately, from straight or articulated arms with lighting to telescopic or anti-collision arms.
* It is necessary to select the type of arm in the barrier configuration and review the compatible necessary accessories specified in the Arm and Accessory Guide below.
