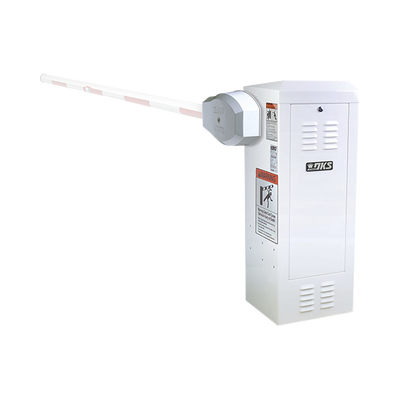

Barrera vehicular / Uso intensivo continuo / Compatible con mástil de hasta 4.26 m (no incluido) / Bajo mantenimiento / 5 años de garantía
- SKU 1601-380
- Categoria Control de Acceso > Acceso Vehicular > Barreras Vehiculares
Key Features
- Continuous use barrier with 1/2 Hp motor
- Supports arm up to 4 meters
- Operation class II, III and IV (According to UL 325)
Physical and Electrical Characteristics
- Power supply 115 Vac
- Dimensions: 387.35 x 1105 x 394 mm
- Current consumption of 5.4 Amp.
Highlighted Features
- 5-year warranty against manufacturing defects.
- Integrated on / off switch.
- Left or right barrier configurable in the field.
Continuous use vehicular barrier compatible with an arm up to 4 meters.
Model 1601-380 contains:
- Continuous use barrier with 1/2 Hp motor.
- Plastic mast cap in white.
Additional features:
- Magnetic limit programming
- Two built-in ports for mass sensors
- Programmable automatic closing
- Two built-in voltage outputs for accessory connection.
- 1/2 Hp motor for continuous use.
- Option for folding arm (Sold separately)
- Arm options with white or Red/Green illumination (Sold separately)
Additional notes:
- The arm and installation kit are sold separately
- 5-year warranty against manufacturing defects.
What additional components should be quoted to assemble a complete system?
Step 1 Choose a mast and installation kit
Octagonal aluminum arm without accessories 1601-555, requires an installation kit 1601-242.
Octagonal arm with reverse edge without illumination 1601-555, requires an installation kit 8080-235 and a reverse edge without light 8080-612.
Octagonal arm with reverse edge with RED / GREEN illumination 1601-555, requires an installation kit 8080-235 and a reverse edge with light 8080-412
Octagonal arm with reverse edge without illumination and impact folding system 1601-555, requires an installation kit with folding system 8080-295 and a reverse edge without light 8080-612
Octagonal arm with reverse edge with RED / GREEN illumination and impact folding system 1601-555, requires an installation kit with folding system 8080-295 and a reverse edge with light 8080-412
Step 2 Choose optional elements
Original DKS mass sensor 9410-010, requires a magnetic loop SYSLM6
Heavy-duty triple push-button station for vehicle access applications XBSSW01
Safety photocell with 7-meter range XBSRR7
Safety laser for vehicle access applications 10LZR-H100-KIT19327
Traffic light for Doorking barriers 1603-222
Additional Notes and Recommendations
All components and accessories are sold separately.
Vehicle access devices must be installed by certified personnel.
They apply to model 1601-380.
The warranty specifically covers damages and/or malfunctions resulting from a manufacturing defect in the product.
Any damage caused by incorrect operation or installation voids the product's warranty policy.
Compliance with UL325 standard requires the use of additional safety devices. For more information, you can consult the following link UL 325 Safety Standard
In order to ensure better protection against electrical discharges, it is necessary to connect an Earth Ground line to the designated terminals on the vehicular barrier, and also add a line protector device against electrical discharges.
NOTE: Consider arm rests XB-POST on arms of 4 m or more to avoid premature damage to the mechanism.
