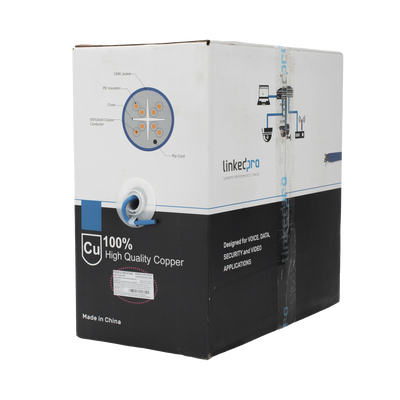

305m (1000ft) Cat6A U/UTP Cable Reel, Blue, CMR, Supports 10G-BaseT for Frequencies up to 500MHz, UL
305m (1000ft) Cat6A U/UTP Cable Reel, Blue, CMR, Supports 10G-BaseT for Frequencies up to 500MHz, UL
Disponible:
En Stock
- SKU PRO-CAT6A-R
- Categoria Videovigilancia > Cables y Conectores > Categoría 6A
$ 4,615.68 MXN
The LINKEDPRO Category 6A cable is a high-performance cable (ANSI/TIA/EIA-568-2.D Cat 6A) and is a standard for Gigabit Ethernet and other network protocols. It reaches frequencies of up to 500 MHz on each pair and a speed of 10 Gbps.
Main Features
- Megapixel IP CCTV / Analog video installations
- High-speed local area networks
- Wireless networks
- For high-speed data applications, Fast Ethernet, Gigabit Ethernet, and 10 Gigabit Ethernet.
- Gigabit voice/data installations.
Physical and Electrical Characteristics
- Conductor: 100% copper
- Installation: Indoor
- Outer Color: Blue
- Gauge: 23 AWG
- Insulation: PVC CMR
- Diameter: 6.6 mm
- Frequency: 500 MHz
Approvals and Certifications
- UL: E488955
- ANSI/TIA
- ISO/IEC
- CENELEC EN
- ANSI/TIA-568-2.D
- ISO/IEC 61156
- 10BASE-T Ethernet
- 100BASE-T Fast Ethernet
- 1000BASE-T Gigabit Ethernet
- 10GBASE-T Gigabit Ethernet
- Meets Permanent Link Performance Tests at 90 meters
* Price per 305-meter reel.
