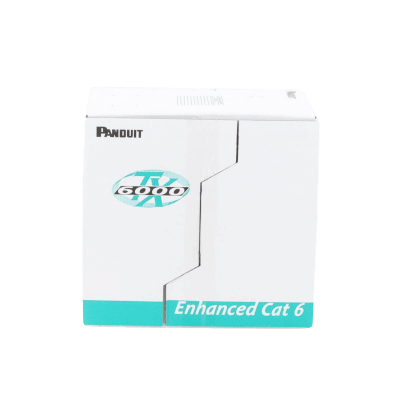

UTP Cable Reel, 305 Meters (1000 Feet), Copper, TX6000? PanNet, Reelex, Orange, Enhanced Category 6 (23 AWG), PVC (CM), 4-Pair
Review: 5 -
Rated 5/5 based on 11 customer reviews
"Excelentes productos" by , written onJun 4, 2021
Los productos siempre en tiempo y forma.
Vigilancianetwork 1

UTP Cable Reel, 305 Meters (1000 Feet), Copper, TX6000? PanNet, Reelex, Orange, Enhanced Category 6 (23 AWG), PVC (CM), 4-Pair

Disponible: En Stock
$ 6,228.76 MXN

Product Features

  • Panduit™ TX6000™ U/UTP copper cabling systems are designed for optimal network performance, design flexibility, and reliability to protect network investments well into the future. Each system provides users with a headroom guarantee that will exceed ANSI/TIA-568-2.D Category 6 and ISO 11801 Edition 2.1 Class E standards for the following key electrical parameters: Insertion Loss (IL), Near-End Crosstalk (NEXT), Power Sum NEXT, ACR-N, Power Sum ACR-N, ACR-F, Power Sum ACR-F, and Return Loss.
  • It has descending cable length markings, making it easy to identify the remaining cable, reducing installation time and cable waste.
  • It features a separator tape that separates the twisted pairs to provide robust performance. With reduced attenuation, it maximizes the amount of signal reaching the receiver as well as bandwidth.
Applications
  • High-Speed Voice/Data/Video Networks
  • Megapixel IP CCTV, TurboHD(TVI) Installations
  • Wireless Networks
  • Power over Ethernet IEEE 802.3af and 802.3at Applications
Technical Specifications
  • Electrical Performance: Certified performance up to 100 meters
  • Color: Orange
  • Conductor: 23 AWG solid copper insulated with HDPE polymer
  • Jacket: PVC
  • Flame Rating: UL 1685
  • Diameter: 5.6 mm (0.222") nominal
  • Weight: 11 kg/305m (26 lbs./1000 ft.)
  • Installation Tension: 110N (25lbf) maximum
  • Temperature Rating: 0 to 50°C (32°F to 122°F) during installation; -20° to 60°C (14° to 140°F) in operation
  • Frequency: 250 MHz
Certifications
  • UL 1685
  • ANSI/TIA-568-C.2
  • ISO 11801
