BOSCH F_FPP5000 - External power supply 24V 6 amperes
- SKU FPP 5000
- Categoria CCTV Industrial > Incendio > Módulos
FPP 5000 External power supply
The FPP-5000 external power supply kit is designed as a universal power supply and has space for two 12 V/45 Ah batteries. Its configuration includes components from the modular FPA‑5000 fire panel.
Basic functions
In the FPP-5000 power supply, the panel rail made of fiberglass reinforced plastic has a BCM-0000-B battery control module built in. The power supply is inserted into the power supply holder and is ready to operate immediately via the pre-wired socket and plug connections. The holder has a thermal sensor.
The UPS 2416 A universal power supply is protected against overvoltages and reverse polarity. The output voltage is externally monitored and controlled. The FAULT output indicates that a fault has occurred. The integrated green LED indicates that the unit is operational. The BCM‑0000‑B battery control module controls the power supply and the charging of the batteries (2 x 12 V / 45 Ah), according to temperature parameters and set times. Each voltage output is electronically fused. All voltage outputs can be connected in parallel.

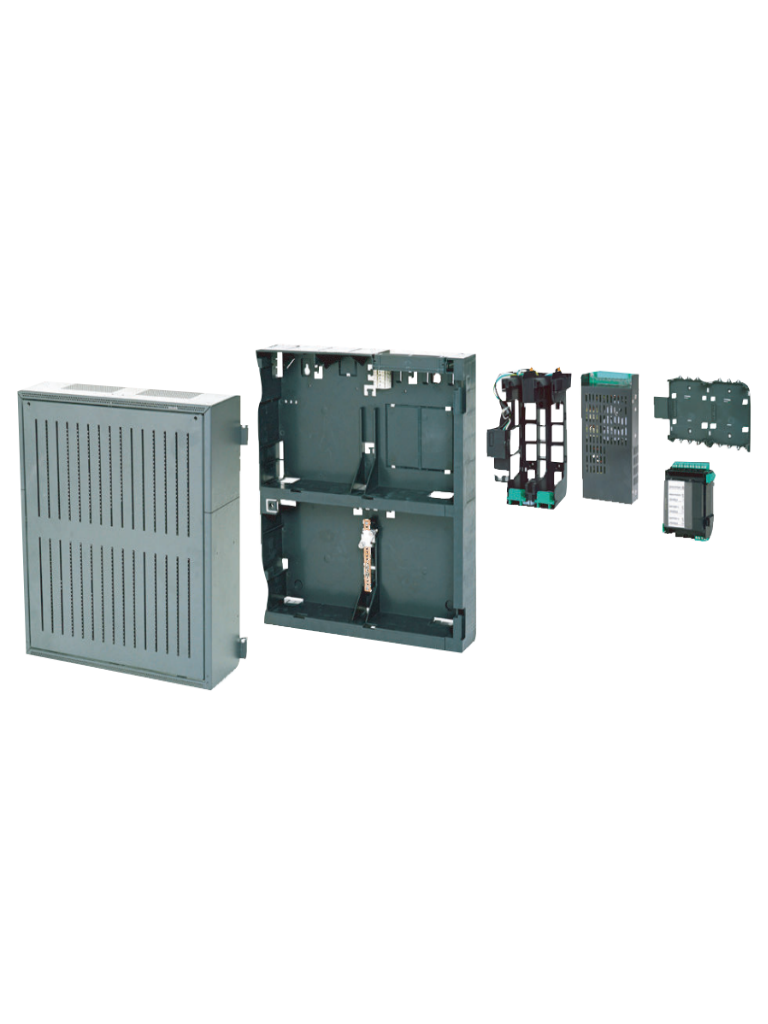

Included parts
- 1 Power supply housing, medium installation frame, with power supply holder PMF 0002 A.
- 1 Medium mounting frame FMH 0000 A.
- 1 24 V/6 A universal power supply UPS 2416 A.
- 1 Short central rail PRS 0002 A.
- 1 Battery control module BCM-0000-B.
- 1 BCM/UPS cable set CPB 0000 A.
- 1 BCM/battery cable set CBB 0000 A.
- 1 Connection cable to batteries for rack-mount housing.
- 1 Supplementary package.
Note: FPP 5000 External power supply kit for universal power supply
Order number: FPP 5000.
Main features
- Temperature and time controlled charging process.
- Each voltage output is fuse protected.
- Can carry two batteries
Specifications
Electrical
- Input voltage range: From 100 VAC to 240 VAC.
- Input frequency range: From 50 Hz to 60 Hz.
- Efficiency 85%.
- Overlap time > 100 ms at 230 VAC.
Output voltage
- Power supply: 26 to 29 VDC (depending on temperature).
- Nominal mains supply: 26.8 VDC (at 40 °C).
- Batteries 21 to 23 VDC
- Max output current. 6 A
- Max output. 160 W (continuous)
- Capacity of battery fault, AC fault and general fault outputs 0 V / 0 to 20 mA.
- Voltage outputs: 2 switch outputs +24 V / 2.8 A (20.4-30 V), battery-backed.
Mechanical
- Housing material Steel sheet, painted.
- Housing color Slate grey, RAL 7015.
- Front: anthracite grey, RAL 7016.
- Dimensions (installed) Approx. 527 x 456 x 236 mm.
Environmental
- Installation classes according to EN 60950: Installation class I.
- Allowed operating temperature: From -5 °C to 50 °C.
- Allowed storage temperature: From -20 °C to 60 °C.
- Relative humidity Max. 95% non-condensing.
- Protection level (IEC 60529) IP 30.
- Cooling Fanless ventilation.
