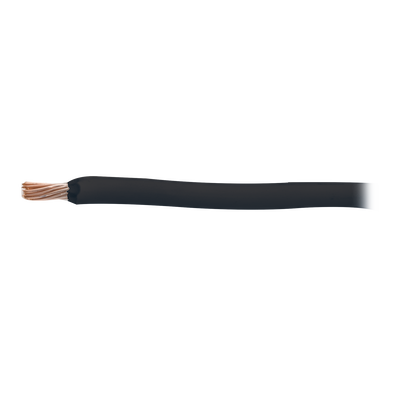

18 AWG Black Electrical Wire, Stranded Soft Copper Conductor. PVC Insulation, Self-Extinguishing. 100 Meter Spool (328.08 Feet)

Disponible: En Stock
$ 600.67 MXN

SLY328BLK/100

Soft copper conductor with self-extinguishing PVC insulation

Sold in 100-meter coil

THW-LS conductors are high-safety, manufactured for reliable use in dry, wet, or oily locations, and installed in ducts, conduits, or trays. Their excellent self-extinguishing properties make them ideal for installation in residential buildings and small businesses.

Features:
  • Gauge: 18 AWG
  • Number of strands: 19
  • Conductor area: 33.6 mm²
  • Conductor diameter: 7.42 mm
  • Insulation thickness: 1.52 mm
  • Outer diameter: 10.3 mm
  • Weight per meter: 0.372 kg
  • Coating color: Black
  • Presentation: 100 m roll
Specifications:
  • NMX-J-010-ANCE
  • Operating temperature in dry locations: 90 °C
  • Operating temperature in wet locations: 75 °C
  • Attributes:
  • LS: Resistant to flame propagation, low smoke emission, and low acid gas content
  • FV2 (VW-1): Flame retardant
  • Slip-resistant
  • CT* Approved for use in cable trays
  • SR* Weather and sunlight resistant
Related products:
  • 2 AWG: SLY286BLK/100, SLY286WHT/100
  • 4 AWG: SLY287BLK/100, SLY287GRN/100, SLY287RED/100, SLY287WHT/100
  • 6 AWG: SLY291BLK/100, SLY291GRN/100, SLY291RED/100, SLY291WHT/100
  • 8 AWG: SLY296BLK/100, SLY296GRN/100, SLY296RED/100, SLY296WHT/100
  • 10 AWG: SLY304BLK/100, SLY304GRN/100, SLY304RED/100, SLY304WHT/100
  • 12 AWG: SLY308BLK/100, SLY308GRN/100, SLY308RED/100, SLY308WHT/100
  • 14 AWG: SLY312BLK/100, SLY312GRN/100, SLY312RED/100, SLY312WHT/100
  • 16 AWG: SLY316BLK/100, SLY316GRN/100, SLY316RED/100, SLY316WHT/100
  • 18 AWG: SLY328BLK/100, SLY328GRN/100, SLY328RED/100, SLY328WHT/100
  • 1/0 AWG: SLY343BKL/100
  • 2/0 AWG: SLY346BKL/100
  • 3/0 AWG: SLY347BKL/100
  • 4/0 AWG: SLY349BKL/100

Descarga la ficha técnica aquí
