General Description

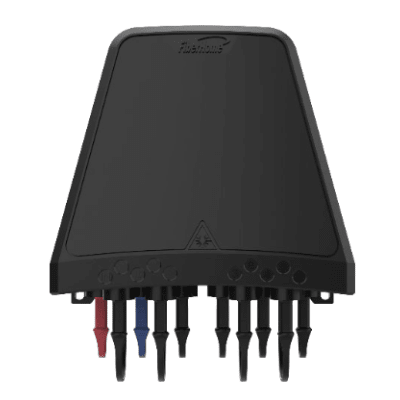

The FitDP-470A-9 box is an Easyconn® pre-connected outdoor optical distribution box designed by FiberHome. It serves as a protected access point between the distribution cable and the drop cable, offering a reliable solution for FTTH (Fiber To The Home) installations in demanding outdoor environments. Its IP68 protection rating makes it ideal for harsh environments and tight spaces, guaranteeing excellent durability and ease of maintenance.
Key Features
- Compact and aesthetic design, easy to install
- High-strength material with great environmental adaptability
- Excellent sealing: water and dust resistant
- Drop cable ports with plug & play design, for quick Easyconn® Connector installation
- Lid with anti-loss design and dust caps
- Eco-friendly materials, non-corrosive to metallic components
- Multiple installation methods:
Installation Methods
- Wall mounting
- Pole mounting
- Cable messenger mounting
- Suitable for underground installation (manhole, conduit, or trench)
Physical Characteristics
-
Dimensions: 146 x 143 x 67 mm (±5 mm)
-
Unbalanced optical splitter: 30/70
-
Balanced optical splitter: 1:9 Micro type splitter
-
Operating temperature: -30 °C to +65 °C
-
IP protection rating: IP68 (Water and dust resistant)
-
Impact resistance (IK): IK09
-
Packaging dimensions: 215 x 155 x 160 mm (±3 mm)
-
Color: Black
Download the technical sheet here
