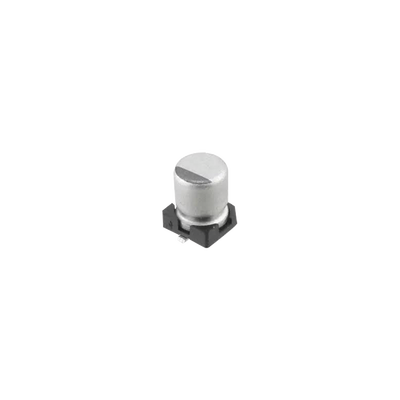

Aluminum Electrolytic Capacitor, 1uF, 50V, 20% SMD type.
Review: 5 -
Rated 5/5 based on 11 customer reviews
"Excelentes productos" by , written onJun 4, 2021
Los productos siempre en tiempo y forma.
Vigilancianetwork 1

Aluminum Electrolytic Capacitor, 1uF, 50V, 20% SMD type.

Disponible: En Stock
$ 17.83 MXN

Key Features

  • 1uF capacitor with 20% tolerance
  • Maximum voltage range of 50 VDC
  • Compact dimensions: 4 x 5.4 mm
  • Compatible with SMD surface mount
  • RoHS compliant for electronic products

Technical Specifications

  • Type: Aluminum Case for SMD
  • Capacitance: 1 uF
  • Tolerance: 20% (120 Hz, 20°C)
  • Voltage Range: 50 Vdc
  • Dimensions: 4 x 5.4 mm
  • Temperature Range: -40°C to +105°C
  • Soldering Resistance: Capacitance changes ±10% of initial value
  • Leakage Current: ≤ initial specified value
  • Voltage Code: H (50V)
  • Brand: SYSCOM
  • Model: 49332071ND
Electrical Characteristics
  • Tan δ (50V): ≤ 0.12
  • Impedance at -25°C / +20°C: ≤ 2
  • Impedance at -40°C / +20°C: ≤ 3
  • Ripple Current: 46 mArms at 105°C
  • Test Frequency: 120 Hz at 20°C
Lifespan
  • Durability Test: 1000 hours at 105°C
  • Storage: 1000 hours at 105°C without load
  • Recovery: Characteristics recover at 20°C
Marking
  • Print: Black on top
  • Voltage Code: H (50V)
  • Series Code: UUQ

Dimensions

  • Diameter (φD): 4 mm
  • Length (L): 5.4 mm
  • A: 1.8 mm
  • B: 4.3 mm
  • C: 4.3 mm
  • E: 1.0 mm
  • H: 0.5 to 0.8 mm

Applications

  • Audio equipment
  • Power circuits
  • Power supplies
  • Ripple filters

Mounting Information

  • Compatible with automatic mounting machines
  • Uses carrier tape for SMD mounting
  • Recommended for reflow soldering
  • Resists up to 250°C for 30 seconds during soldering

Additional Information

  • Order Code: 49332071ND
  • Regulations: RoHS compliant (2011/65/EU)
  • Storage Temperature: -40°C to +105°C
  • Leakage Current after 1 minute: ≤ 0.03 CV or 4 µA

Download the datasheet here
