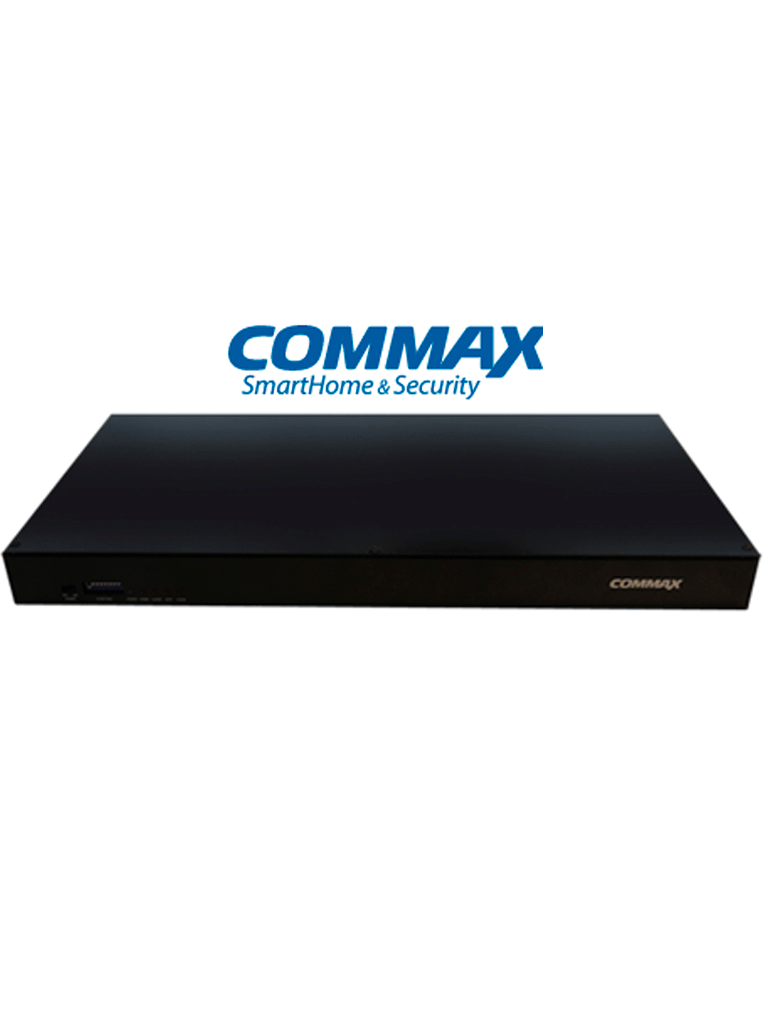

COMMAX CCU232AGF - Distribuidor para panel de audio DR2AG con capacidad para conectar hasta 32 equipos AP2SAG por conexión a 2 hilos, sistema para apartamentos
- SKU CCU-232AGF
General Information
Commax continually strives for customer satisfaction, wishing to be the first choice for our users in the markets we serve, by providing superior design products, solutions with advanced technology, as well as the certifications required by all markets. Currently, COMMAX is a registered trademark in more than 115 countries and exports to over 100 countries, mostly under the COMMAX brand.
It provides power for each of the family units. Commax multi-entry system has been developed through total quality management to ensure the stability and efficiency of this system, which serves user convenience with easy operation and installation.
Only 1 UTP cable is sufficient for the system; above all, this is very suitable for public residences or apartment complexes. Greater flexibility for various sites (32 CH).
Technical Specifications
- Power Supply: DC 24V, 1.5A
- Operating Temperature: -10C° ~ +40C°
- Channel: 32CH
- Dimensions (mm): 419(W) x232(H) x37(D)
- Mounting Type: DIN Rail Type
- Wiring: From Distributor to lobby phone: 1 UTP
- Home Unit: 2 wires (non-polarity)
- Maximum wiring distance from distributor to Audio Intercom: up to 200 meters. (DR2AG)
- Daisy-chain connection between distributors: up to 30 meters per link. (CCU216AGF, CCU232AGF)
- Maximum wiring length from distributors and Intercom: up to 100 meters. (AP2SAG)
