N Male EZfit® Connector for FXL-780 and AVA5-50 Cable
Introduction

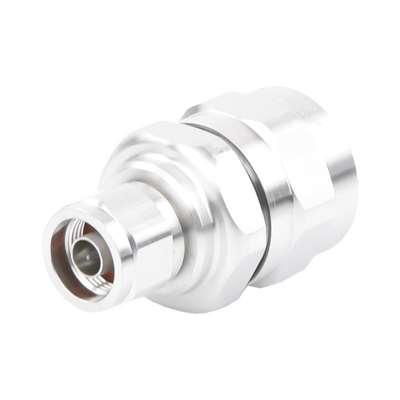

The Andrew / CommScope EZfit® N male connector model 78EZNM is designed to offer maximum efficiency and performance in RF applications with FXL-780 and AVA5-50 cables. This connector is ideal for communication projects that require a robust, durable, and highly efficient connection. With high-quality construction and technical specifications that exceed industry standards, this connector ensures optimal and reliable signal transmission.
General
-
Brand: EZfit®
-
Harmonized System [HS] Code: 854420 (Coaxial cable and other coaxial electrical conductors)
-
Mounting Angle: Straight
-
Ordering Note: CommScope® Standard Product (Global)
Electrical
-
Connector Impedance: 50 ohms
-
Operating Frequency Band: 0 – 5000 MHz
-
Cable Impedance: 50 ohms
-
Third-Order IMD, Typical: -116 dBm at 1800 MHz
-
Third-Order IMD Test Method: Two +43 dBm carriers
-
RF Operating Voltage, Maximum [V RMS]: 707.00 V
-
Test Voltage: 2000 V
-
External Contact Resistance, Maximum: 0.30 mOhm
-
Internal Contact Resistance, Maximum: 2.00 mOhm
-
Insulation Resistance, Minimum: 5000 MOhm
-
Maximum Peak Power: 10.00 kW
-
Insertion Loss, Typical: 0.05 dB
Mechanical
-
External Contact Attachment Method: Clamp
-
Internal Contact Attachment Method: Captive
-
External Contact Plating: Trimetal
-
Internal Contact Plating: Silver
-
Coupling Durability: 500 cycles (IEC 61169¬16:9.5 Method)
-
Connector Retention Force: 1334 N | 300 lbf
-
Connector Retention Torque: 8.13 N¬m | 72.00 in lb
-
Insertion Force: 66.72 N | 15.00 lbf (MIL¬C¬39012C¬3.12, 4.6.9 Method)
-
Pressurizable: No
-
Coupling Nut Test Torque: 4.52 N¬m | 40.00 in lb
-
Coupling Nut Retention Force: 444.82 N | 100.00 lbf (MIL¬C-39012C¬3.25, 4.6.22 Method)
Dimensions
-
Nominal Size: 7/8 in
-
Diameter: 37.21 mm | 1.47 in
-
Length: 58.00 mm | 2.28 in
-
Weight: 137.08 g | 0.30 lb
Environmental
-
Operating Temperature: -40 °C to +85 °C [¬40 °F to +185 °F]
-
Storage Temperature: ¬55 °C to +85 °C [¬67 °F to +185 °F]
-
Immersion Depth: 1 m (IEC 60529:2001 Immersion Test, IP68)
-
Water Jet Test: Mated (IEC 60529:2001 Method, IP66)
-
Humidity Resistance: MIL¬STD-202F Method, 106F Method
-
Mechanical Shock Test: MIL¬STD¬202F Method, 213B Method, Test Condition C
-
Vibration Test: IEC 60068¬2¬6 Method
-
Corrosion Test: MIL¬STD-1344A Method, 1001.1 Method, Test Condition A
Return Loss/VSWR Performance
-
50–1000 MHz: VSWR 1.02, Return Loss 40.00 dB
-
1000–1900 MHz: VSWR 1.03, Return Loss 38.00 dB
-
1900–2200 MHz: VSWR 1.04, Return Loss 35.00 dB
-
2200–2700 MHz: VSWR 1.05, Return Loss 32.00 dB
-
2700–3600 MHz: VSWR 1.07, Return Loss 30.00 dB
-
3600–5000 MHz: VSWR 1.11, Return Loss 26.00 dB
Regulatory Compliance/Certifications
-
RoHS 2011/65/EU: Compliant by Exemption
-
China RoHS SJ/T 11364¬2006: Above Maximum Concentration Value [MCV]
-
ISO 9001:2008: Designed, manufactured, and/or distributed under this quality management system.
Download the technical data sheet here
