Receptáculo dúplex, 15A 125V/ 2 polos 3 hilos/ Nema 5-15R/ Color blanco.
Review: 5 -
Rated 5/5 based on 11 customer reviews
"Excelentes productos" by , written onJun 4, 2021
Los productos siempre en tiempo y forma.
Vigilancianetwork 1

Receptáculo dúplex, 15A 125V/ 2 polos 3 hilos/ Nema 5-15R/ Color blanco.

Disponible: En Stock
$ 62.09 MXN

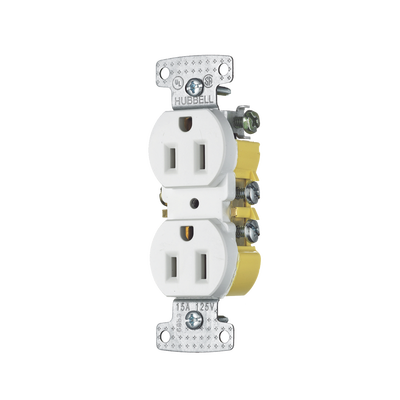

Straight blade devices, residential grade receptacle, duplex, 15A 125V, 2-pole 3-wire grounding, nema 5-15R, white.

Specifications
  • Mounting: Wall, screws
  • Material: Nylon / brass
  • Type: Receptacle
  • Color: White
  • Depth: 0.93'
  • Height: 4.19'
  • Width: 1.52'
  • Poles / Wires: 2P 3W
  • Voltage: 125 V AC
  • Current/Amperage: 15 A
  • Gauge: 14-12 AWG
  • Nema: 5-15R
Performance
  • Environmental- Operating temperatures from -20°C to 60°C.
  • Mechanical- Terminals - Terminal screws accept wire up to #12 - 14 AWG.

Download the datasheet here

Straight blade devices, residential grade receptacle, duplex, 15A 125V, 2-pole 3-wire grounding, nema 5-15R, white.

 Specifications
  • Mounting: Wall, screws
  • Material: Nylon / brass
  • Type: Receptacle
  • Color: White
  • Depth: 0.93'
  • Height: 4.19'
  • Width: 1.52'
  • Poles / Wires: 2P 3W
  • Voltage: 125 V AC
  • Current/Amperage: 15 A
  • Gauge: 14-12 AWG
  • Nema: 5-15R
 Performance
  • Environmental- Operating temperatures from -20°C to 60°C.
  • Mechanical- Terminals - Terminal screws accept wire up to #12 - 14 AWG.

Download the datasheet here
