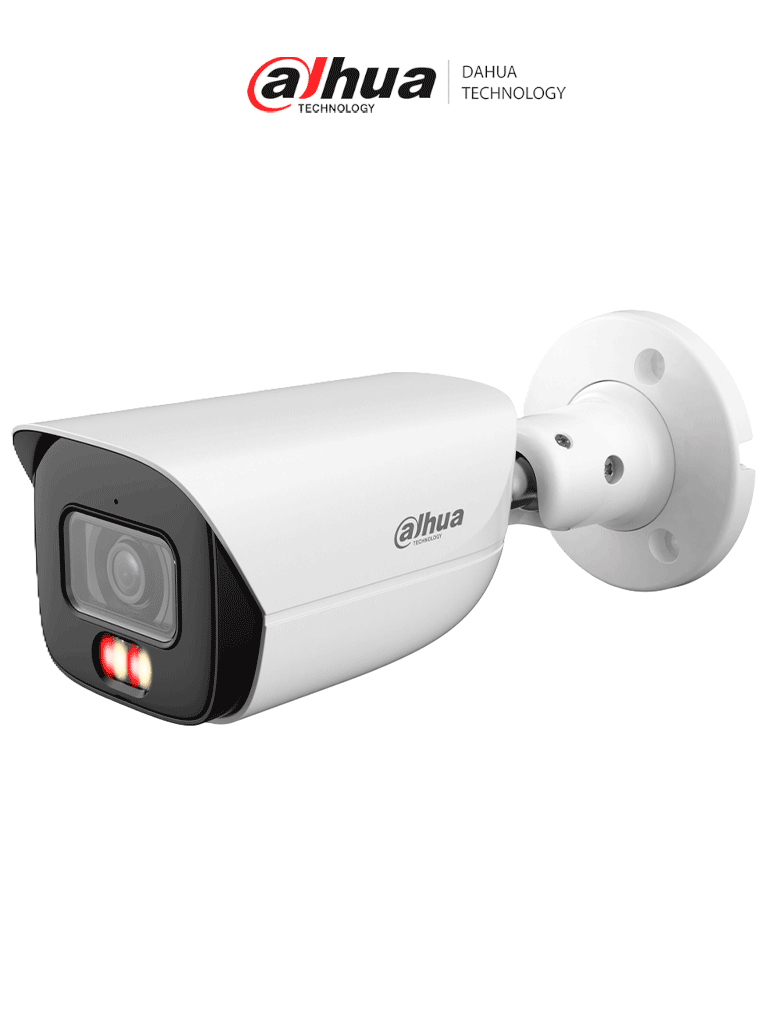

DAHUA DH-IPC-HFW3449E-S-IL - Cámara IP Bullet de 4 Megapíxeles con Iluminador dual/ WizSense/ Lente de 2.8mm/ 107 Grados de Apertura/ Micrófono Integrado/ IR de 50 Metros/ SMD 4.0/ AcuPick/ AI SSA/ WDR Real/ IP67/ Ranura para MicroSD/ PoE/
- SKU DH-IPC-HFW3449E-S-IL
- Categoria CCTV Industrial > Videovigilancia > Cámaras IP > Bullet
General Information
The DAHUA DH-IPC-HFW3449E-S-IL camera is an advanced IP Bullet camera with 4-megapixel resolution and a 2.8mm lens covering a 107-degree angle. Equipped with a dual illuminator, it allows clear night vision up to 50 meters. It incorporates SMD 4.0 technology to detect human or vehicular movement, and AI SSA to improve image quality. Its WDR capacity and IP67 classification guarantee reliable performance even in difficult conditions. In addition, it includes an integrated microphone, a MicroSD slot, and PoE support, ideal for outdoor video surveillance installations.
Main Features
- Image Sensor: 4 MP 1/2.9" CMOS, low luminance and high-definition image.
- Max. Output: 4 MP (2688 × 1520) at 25/30 fps
- Codec: H.265, high compression rate, ultra-low bit rate.
- Illumination: Built-in multi-core light, max. IR distance is 50 m and max. warm light distance is 50 m.
- Technologies: ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible encoding, applicable to various storage and bandwidth environments.
- Functions: Rotation mode, WDR, 3D NR, HLC, BLC, digital watermark, applicable to various monitoring scenes.
- Smart Monitoring: Intrusion, tripwire (both functions support the classification and accurate detection of vehicles and humans).
- Anomaly Detection: motion detection, video tampering, scene change, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 input, 1 output; built-in microphone.
- Audio: 1 input, 1 output
- Storage: Supports Micro SD card up to 512 G.
Technical Specifications
- Power Supply: 12 VDC/PoE (802.3af)
- Power Consumption: Basic: 3.3 W (12 VDC); Max: 7.2 W (12 VDC)
- Operating Temperature: – 40 °C to +60 °C
- Operating Humidity: ≤95 % (RH), non-condensing
- Protection: IP67
- Housing Material: Metal
- Product Dimensions: 192.7 mm × 70.5 mm × 66.4 mm
- Net Weight: 610 grams
Includes
- x1 Dome Camera DH-IPC-HFW3449E-S-IL
- x1 User manual
- x1 Warranty policy
Frequently Asked Questions
What is the maximum night vision distance of the DAHUA DH-IPC-HFW3449E-S-IL camera?
The camera has an IR vision range of up to 50 meters.
Can I install this camera outdoors?
Yes, the camera has an IP67 rating, making it dust and water resistant, ideal for outdoor conditions.
Is it compatible with PoE systems?
Yes, the camera supports PoE, which allows data and power to be transmitted through a single Ethernet cable.
TVC Content
- How to select the correct accessories from the DAHUA brand?
- How to activate alarm output on an IP camera?
- How to add IP cameras to Dahua recorders?
