DAHUA DHI-ASI1212M-DW - Control de Acceso Antivandálico Exterior Wi-Fi/ Soporta 10,000 Usuarios, Contraseñas y Tarjetas ID / 3,000 Huellas / Teclado Mecánico/ RS-485 y Wiegand/ TCP/IP / Alimenta Cerradura 12V / IP65/ IK08 /
- SKU DHI-ASI1212M-DW
General Information

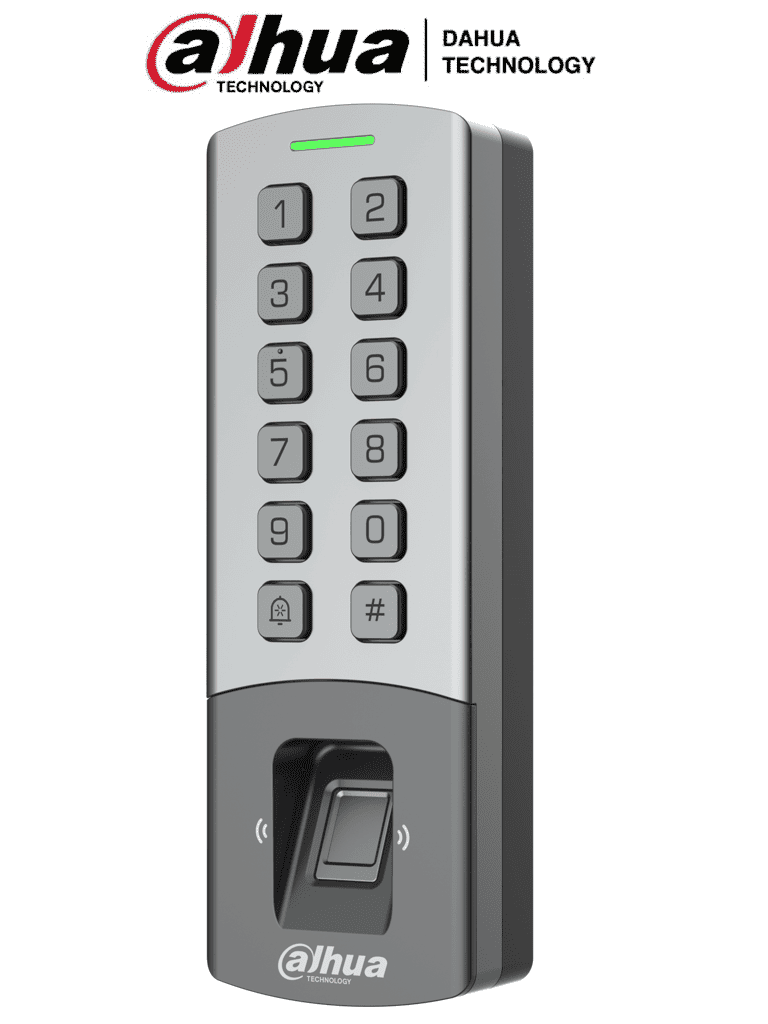

The DAHUA DHI‑ASI1212M‑DW is a standalone, vandal-proof access control terminal, manufactured with a zinc alloy front casing and a polycarbonate rear, with IP65 and IK08 ratings that guarantee outdoor protection. It includes a backlit mechanical keypad, a capacitive fingerprint reader, and supports up to 10,000 users, 3,000 fingerprints, 10,000 ID cards, and 100,000 events. Multiple unlocking methods are compatible (card, password, fingerprint, remote), it supports TCP/IP, Wi‑Fi, RS‑485, and Wiegand, and offers configurable alarms for duress, tampering, or illegal use.
Main Features
- Vandal-resistant and weather-proof design
- High capacity for biometric and electronic authentication
- Support for multiple connection interfaces and unlocking formats
- Advanced alarms for robust security control
- Remote web-based configuration, compatible with Dahua platforms
Technical Specifications
- Main Processor: Embedded processor
- Button Type: Mechanical
- Network Protocols: IPv4, IPv6, UDP, TCP, P2P
- Interoperability: ONVIF, CGI
- User Capacity: 10,000
- Fingerprint Capacity: 3,000
- Card Capacity: 10,000
- Password Capacity: 10,000
- Record Capacity: 100,000
- Verification Methods: Card, password, fingerprint, remote
- Wireless Network: Wi-Fi 2.4 GHz (IEEE 802.11b/g/n)
- Power Supply: 12 VDC, 1.5 A
- Protection: IP65, IK08
- Power Consumption: ≤18 W
- Device Dimensions: 169.0 × 57.5 × 33.3 mm
Includes
- 1x Standalone access control DAHUA DHI‑ASI1212M‑DW
- 1x User Manual
- 1x Warranty Policy
Frequently Asked Questions
Can I use it outdoors?
Yes, it has IP65 and IK08 protection, suitable for outdoor use and vandalism.
What are its maximum storage capacities?
Up to 10,000 users, 3,000 fingerprints, 10,000 cards, and 100,000 records
Is it compatible with external systems and DSS Pro?
Yes, it works with TCP/IP, Wi‑Fi, Wiegand, RS‑485, and integrates with DSS Pro, SmartPSS lite, and DMSS.
