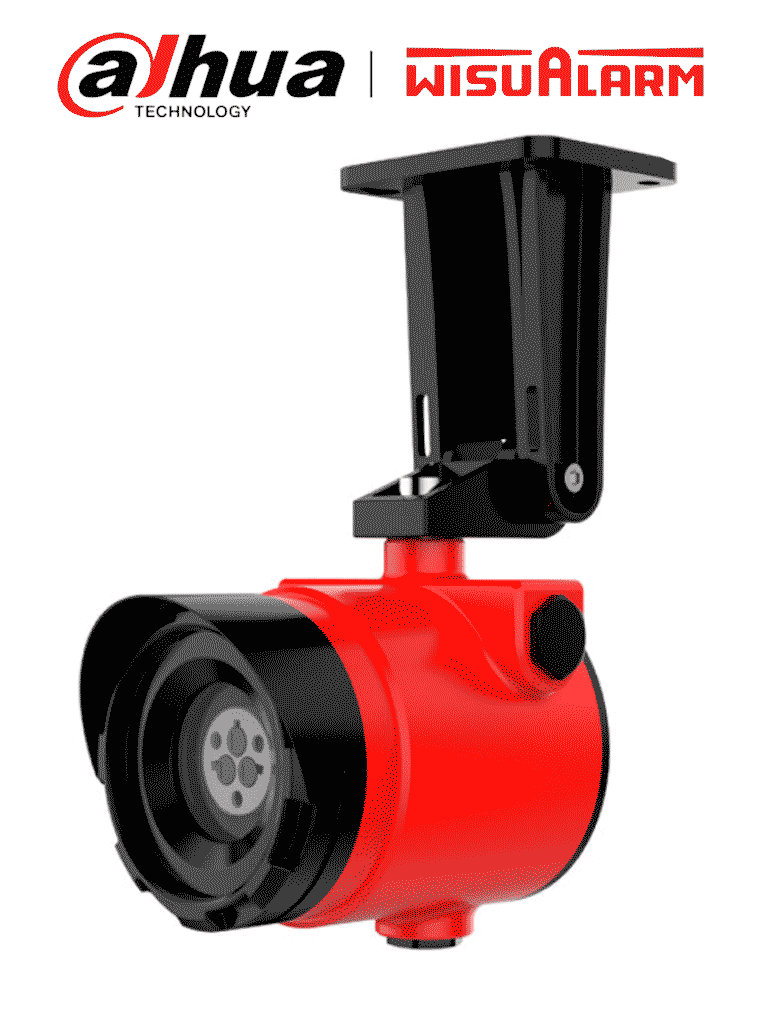

DAHUA WISUALARM DHI-HY-IF43DA-EX-GYXF - Flame detector, infrared point, RS 485, Relay output, FFT processing algorithm, Response time <10 seconds, 24 VDC
- SKU DHI-HY-IF43DA-EX
- Categoria CCTV Industrial > Incendio > Detectores
General Information
The DAHUA DHI-HY-IF43DA-EX-GYXF is a point infrared flame detector, ideal for industrial applications in hazardous environments. It uses a triple spectral band sensor (3.8 μm, 4.3 μm, 5.0 μm) to detect flames with high precision and interference immunity. It offers multiple outputs: RS485, 4–20 mA, and three relays (alarm, fault, and auxiliary). Its explosion-proof design and self-diagnosis functions make it reliable for petrochemical industries, tunnels, and paint plants.
Main Features
- Flexible installation: Uses a specific explosion-proof cast aluminum housing, with a 360-degree adjustable installation angle.
- Superior protection: Explosion-proof rating Ex d IIC T6, high resistance to electromagnetic interference.
- Intelligent algorithms: Intelligent composite discrimination of real flames, eliminating interference and reducing false alarm rates.
- High sensitivity: Maximum detection range of 60 m, emitting a fire alarm signal within 10 seconds.
Technical Specifications
- Model: DHI-HY-IF43DA-EX-GYXF
- Type: Point infrared flame detector
- Spectral range: 3.8 μm, 4.3 μm, 5.0 μm
- Sensitivity: 5 adjustable levels (3 by default)
- Response time: <10 s (adjustable alarm delay 0–30 s)
- Maximum detection distance: Ethanol: 45 m; Heptane: 55 m
- Operating voltage: DC 24 V (16–28 V)
- Operating current: Monitoring: <70 mA; Alarm: <80 mA; Defrosting: <300 mA
- Indicators: Alarm (solid red), Fault (flashing red), Monitoring (solid green)
- Outputs: RS485, 4–20 mA, three relays (alarm, fault, auxiliary)
- Operating temperature: –25 °C to +75 °C
- Relative humidity: ≤95% (non-condensing)
- Dimensions: 146 × 123 × 133 mm
- Weight: 1.55 kg (without mounting bracket)
- Mounting: Ceiling or wall
Includes
- Infrared flame detector DHI-HY-IF43DA-EX-GYXF
- User manual
- Warranty policy
Frequently Asked Questions
What type of flames can this device detect?
It detects ethanol flames up to 45m and heptane flames up to 55m, even in high interference conditions.
Is it suitable for explosive atmospheres?
Yes, it has explosion-proof certification (ExdⅡC T6 Gb/ExtDA21 IP66 T80°C), suitable for hazardous areas.
