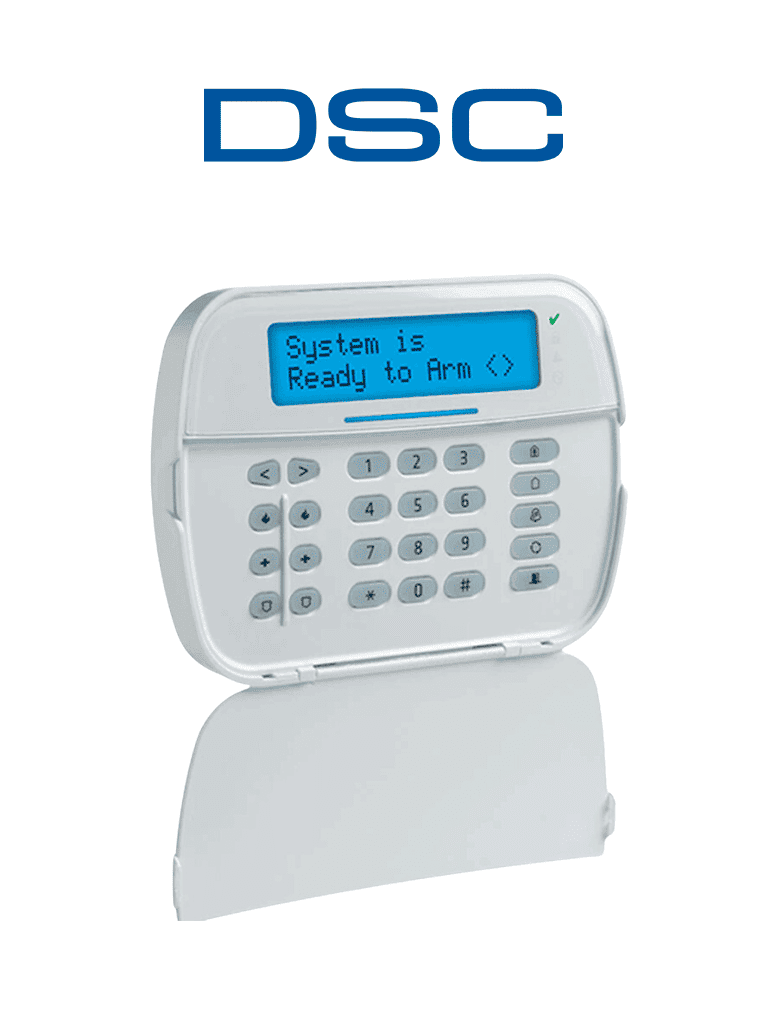

DSC HS2LCDPN - 32-character alpha-numeric LCD wired keypad with proximity reader, supports 128 zones, compatible with NEO
- SKU HS2LCDP N
General information
Description
PowerSeries Neo wired keypads feature five programmable keys for easy activation of system functions with a single button.
The quick exit function avoids having to disarm and rearm the system every time an occupant needs to leave. Keypad versions with proximity technology allow the user to arm or disarm the system simply by bringing the proximity tag close without having to memorize a code.
Features
Alphanumeric keypad with proximity, supports up to 128 zones, includes terminal for wired zone, blue LCD screen, has 5 programmable keys, fire, medical and panic keys.
- 6 language support
- Global partition status
- Up to 128 wired or wireless zones supported
- Full 32-character programmable labels
- Menu programming
- Modern, slim horizontal keypad
- White backlit keys
- Blue LCD screen
- Shows outdoor temperature
- 5 programmable function keys
- Intuitive clock programming
- Input / output terminal
- Fire, medical and panic keys.
- Adjustable backlight and buzzer keypad
- Double tamper wall and front cover mount
- Available with English function keys
- Proximity with MPT mini prox tags
Technical specifications
- Dimensions: (Height x Width x Depth): 168 x 122 x 20 mm (6 1/16” x 4 7/16” x 13/16”)
- LCD visible area: 99 mm x 24 mm (3 9/10” x 15/16”)
- Current consumption: 125 mA (Max.)
HS2LCD/HS2LCDP/HS2ICN/HS2ICNP/ HS2LED 100 mA
HS2LCDRF/HS2LCDRFP/HS2ICNRF/ HS2ICNRFP 60 mA
- Voltage: 12 VDC Nominal
- Operating temperature: -10°C to 55°C; (14°F to 131°F)
- Relative humidity: 5 to 93%
- Compatibility: Alarm panel HS2032, HS2064, HS2128
- Additional notes: Proximity with MPT mini credentials
