PMP 450i The ultimate in Point-to-Multipoint performance
The PMP 450 platform provides cost-effective high-performance wireless connectivity for network operators of any size.
Built on advanced FPGA and SoC architecture, PMP 450 APs use Cambium Networks' proprietary scheduling/MAC algorithm to enable highly efficient use of limited spectrum and maximum bandwidth allocation, supporting large numbers of subscribers per sector with minimal latency. Frequency reuse via GPS synchronization allows efficient spectrum reuse across the entire network. PMP 450 APs, and the PMP 450 platform in general, offer a comprehensive feature set including extensive L2 management capabilities, highly configurable channel width and spacing, and a host of other parameters.
In addition, the PMP 450i integrates a dynamic interference filter and robust metal enclosures designed to meet IP-67 standards to withstand harsh environments.
Operation Mode
- Point-to-Multipoint Access Point
- Supports up to 238 subscribers
Key features
- Dynamic interference filter; helps to hear only the desired signal.
- 3-5 ms latency, 3 times lower than equipment from other manufacturers.
- IP67 with industrial grade for temperatures from -40 to 60°C
- Proprietary chipset for 3 times faster processing speed compared to other models.
- Secondary port with 802.3at PoE output
- Frequency 4900-5925 MHz
General features
- Up to 300 Mbps real (no license required)
- Channel width 5/10/20/40 MHz
- Dual polarity MIMO2X2
- QoS and VLAN
- Optional: GPS Synchronization, requires U-GPS or CMM5 model equipment for more than two devices.
Physical and electrical characteristics
- Input voltage: 48-59 Vdc 4.5(+) 7.8(-), compatible with 802.3at
- N female type connectors
- Main port 10/100/1000
- Secondary port with 802.3at PoE output (to activate, the equipment must be powered with POE-450I PoE model and the N000065L033A protective gland must be installed).
- Power consumption: 18W without PoE output and 45W with PoE output.
- Dimensions 260 x 134 x 64 mm / Weight: 2 Kg.
- Operating temperature -40 to 60 °C.
Package includes
- 1 PMP 450 Radio
- 1 Port protective gland
Required accessories
- 1 Model 450MBR mount
- 1 PoE feeder model N000000L034A (change to POE450I model if secondary PoE port is enabled)
- 1 Surge protector model 600SSHG
- 1 Sector antenna; among the most efficient antenna options are models A450-60 and A450-90
- 2 Jumpers for antenna connection to the base station; if using A450-60 or A450-90 add LP-NM-NM-1M jumpers
Optional accessories
- Advanced power supply model CG52A (37-60 Vdc input) for installations with batteries and photovoltaic cells
- CMM5 GPS synchronizers to avoid local interference between PMP 450 units on the same tower
Subscriber options
- Connectorized model PMP450ISMC
- Integrated model PMP450B16
Download the technical sheet here
PMP 450i The ultimate in Point-to-Multipoint performance
The PMP 450 platform provides cost-effective high-performance wireless connectivity for network operators of any size.
Built on advanced FPGA and SoC architecture, PMP 450 APs use Cambium Networks' proprietary scheduling/MAC algorithm to enable highly efficient use of limited spectrum and maximum bandwidth allocation, supporting large numbers of subscribers per sector with minimal latency. Frequency reuse via GPS synchronization allows efficient spectrum reuse across the entire network. PMP 450 APs, and the PMP 450 platform in general, offer a comprehensive feature set including extensive L2 management capabilities, highly configurable channel width and spacing, and a host of other parameters.
In addition, the PMP 450i integrates a dynamic interference filter and robust metal enclosures designed to meet IP-67 standards to withstand harsh environments.
Operation Mode
- Point-to-Multipoint Access Point
- Supports up to 238 subscribers
Key features - Dynamic interference filter; helps to hear only the desired signal.
- 3-5 ms latency, 3 times lower than equipment from other manufacturers.
- IP67 with industrial grade for temperatures from -40 to 60°C
- Proprietary chipset for 3 times faster processing speed compared to other models.
- Secondary port with 802.3at PoE output
- Frequency 4900-5925 MHz
General features - Up to 300 Mbps real (no license required)
- Channel width 5/10/20/40 MHz
- Dual polarity MIMO2X2
- QoS and VLAN
- Optional: GPS Synchronization, requires U-GPS or CMM5 model equipment for more than two devices.
Physical and electrical characteristics - Input voltage: 48-59 Vdc 4.5(+) 7.8(-), compatible with 802.3at
- N female type connectors
- Main port 10/100/1000
- Secondary port with 802.3at PoE output (to activate, the equipment must be powered with POE-450I PoE model and the N000065L033A protective gland must be installed).
- Power consumption: 18W without PoE output and 45W with PoE output.
- Dimensions 260 x 134 x 64 mm / Weight: 2 Kg.
- Operating temperature -40 to 60 °C.
Package includes - 1 PMP 450 Radio
- 1 Port protective gland
Required accessories - 1 Model 450MBR mount
- 1 PoE feeder model N000000L034A (change to POE450I model if secondary PoE port is enabled)
- 1 Surge protector model 600SSHG
- 1 Sector antenna; among the most efficient antenna options are models A450-60 and A450-90
- 2 Jumpers for antenna connection to the base station; if using A450-60 or A450-90 add LP-NM-NM-1M jumpers
Optional accessories - Advanced power supply model CG52A (37-60 Vdc input) for installations with batteries and photovoltaic cells
- CMM5 GPS synchronizers to avoid local interference between PMP 450 units on the same tower
Subscriber options - Connectorized model PMP450ISMC
- Integrated model PMP450B16

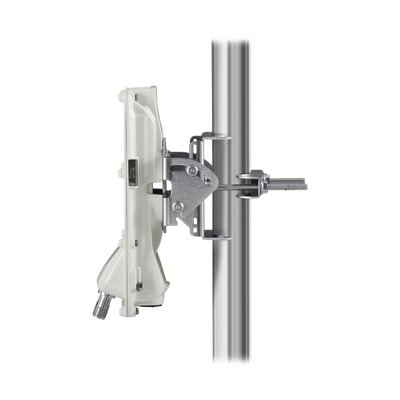

For mast or tower mounting
Rugged metal housing
Durability up to 40 years
N female type connectors
* from factory
Download the technical sheet here
