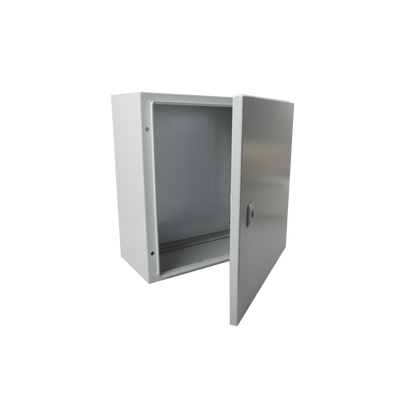

IP66 Steel Outdoor Enclosure (400 x 400 x 200 mm) with Internal Metal Back Plate and Screw-Down Bottom Gland Plate (Includes Lock and T-Key).
Review: 5 -
Rated 5/5 based on 11 customer reviews
"Excelentes productos" by , written onJun 4, 2021
Los productos siempre en tiempo y forma.
Vigilancianetwork 1

IP66 Steel Outdoor Enclosure (400 x 400 x 200 mm) with Internal Metal Back Plate and Screw-Down Bottom Gland Plate (Includes Lock and T-Key).

Disponible: En Stock
$ 1,064.80 MXN

General features

Steel cabinet for outdoor applications such as poles, telecommunication towers or walls where there is no protection against rain or excessive dust.

Physical characteristics
  • Material: Steel
  • Paint: Polyester powder coating
  • Protection level: IP66 (equivalent to NEMA 4)
  • Impact resistance: IK10
  • Material of internal back plate: 1.5mm thick galvanized steel
  • Weight: Approximately 8.77 kg
  • Dimensions: 400 x 400 x 200 mm (width x height x depth)
  • Recommended maximum storage weight: 30 kg
  • Sheet thickness: 1.2 mm in body and door
Includes
  • Steel body and door
  • Back plate for equipment mounting (350 x 365 mm)
  • Security lock with key (PSTK2L and PSTK2K)
  • Bottom cover for gland type connector installation
  • Cardboard packaging
Application
  • Installation of POEs on tower, pole or wall
  • Battery storage (ventilation recommended)
  • Protection of surge protectors, fuses or electrical boards
Recommendations

It is recommended to use gland type connectors for cable routing: See models

* For pole mounting, model PST-WA-080 is suggested

Technical note: Fan implementation is possible; however, the holes must be made manually in the cabinet.

It is recommended to have a fresh air inlet at the bottom and a hot air outlet at the top, for this it is advisable

the implementation of 2 vents model PST-BC-V60 (Not included) and it is necessary that at least one of them has a 60 x 60 mm fan, the recommended model is the following: FAN-602512 (Not included).

Installing the above elements will reduce the protection level (IP) of the cabinet but will improve heat dissipation

Download the technical sheet here
