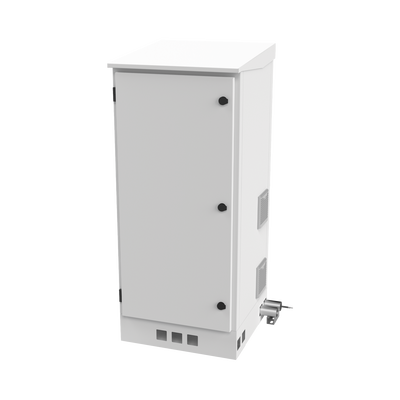

Gabinete de Piso para Exterior con Ventiladores y Termostato con Rack de 19 de 16 U + Espacio para Baterías, Se envía el Gabinete Armado.
Review: 5 -
Rated 5/5 based on 11 customer reviews
"Excelentes productos" by , written onJun 4, 2021
Los productos siempre en tiempo y forma.
Vigilancianetwork 1

Gabinete de Piso para Exterior con Ventiladores y Termostato con Rack de 19 de 16 U + Espacio para Baterías, Se envía el Gabinete Armado.

Disponible: En Stock
$ 26,283.85 MXN

Main Features

  • Outdoor cabinet with fans.
  • 19" standard rack with 16 units + space for battery installation.
  • Also includes 2 poles of 24 Units to install if the battery space is not used.
  • The fans are controlled by an adjustable thermostat.
  • Includes base and anchors for fixing to concrete floor.
  • It has 4 internal terminals for connecting equipment to 110 VAC.
  • Internal plate (at the bottom) for equipment installation.
  • Double security lock with key.
  • Includes filters against dust particle entry and internal thermal insulation.
Physical Characteristics
  • Cabinet body dimensions: 600 x 1429 x 597 mm (width x height x depth)
  • Weight: 84 Kg.
  • Protection rating: IP-54
  • Maximum distance between front rack and rear rack: 372 mm
  • Front rack to door space: 56 mm
  • Distance from front rack stop to rear plate: 483 mm
  • The cabinet is shipped assembled.
Electrical Characteristics

Includes two fans with 0.26A 110/120Vac consumption and a thermostat with a range of 0 to 60°C, rack power strip with 4 outlets, 15A thermal switch and 1.6-meter 18-gauge cable.

Download the technical sheet here
