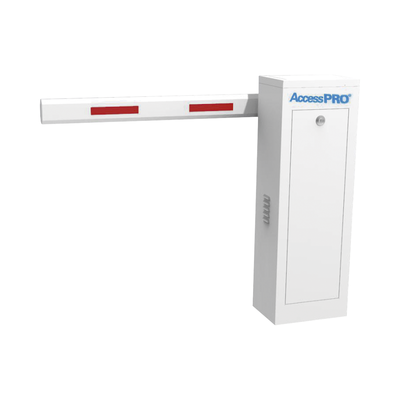

Left Vehicle Barrier Kit with Telescopic Arm / Supports telescopic arm up to 6 meters / Opening Time 6 seconds
- SKU KT-XBS-6ML
- Categoria Control de Acceso > Acceso Vehicular > Barreras Vehiculares
- Supports telescopic arm up to 6 meters
- Left barrier
- Opening time 6 seconds
- Operating voltage 127 Vac
- Power consumption 120 W
- Up to 2400 cycles daily
- Operating temperature -20 to 50°C
- Mechanism torque 150 Nm
- Motor rotation 1500 rpm
Left vehicle barrier kit with telescopic arm up to 6 meters
The kit includes:
- 1 x XBS-6ML Left vehicle barrier
- 1 x XB-TEL-ARMB1 6-meter telescopic arm
Optional accessories not included
- XBS-SW-01 Heavy-duty triple pushbutton
- XB-T23 Wireless keychain remote control
- XB-T18-BC Wireless visor remote control
- XB-REC2 External wireless receiver
- XB-DLP-1101 Single-channel mass sensor
- SYS-LM8 8-meter magnetic loop
- XBS-IR-33 Safety photocell
- XB-ANCLA Anchor for AccessPRO barriers
- XBS-RDA06 Radar for AccessPRO barriers
NOTE: Consider arm rest XB-POST on arms 4m or longer to prevent premature mechanism damage.
ADDITIONAL NOTES
The barrier is prepared to work with an arm from 5 to 6 meters; having an arm of a different length requires changing springs.
To know what type of spring to use, please refer to the following TABLE
For arms longer than 4 meters, it is necessary to use the XB-POST post.
Barrier only compatible with XB-TEL-ARMB1 arm
With correct adjustment of the opening and closing limits, our mechanism should not reach the physical stops.
If your mechanism is reaching the physical stops, please check the following VIDEO.
Barrier not compatible with illuminated arms
