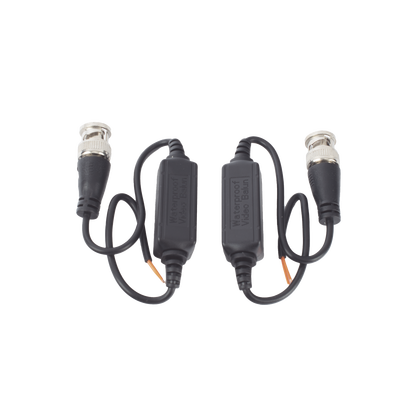

Kit de transceptores (baluns) para EXTERIOR TurboHD hasta 4K HD-TVI / HD-CVI / AHD / CVBS / COAXITRON / AUDIO POR COAXITRON / Menú OSD / CONECTORES 100% COBRE / Con cable RF blindado. Distancia de hasta 200 m en 4K. Calidad PREMIUM

Disponible: En Stock

SKU TT-101-F-TURBO-EXT
Modelo
Categoria Videovigilancia > Accesorios Generales > Transceptores de Video

$ 71.28 MXN

Descripción

TT-101-F-TURBO-EXT

Transceiver Kit

NOTICE: Make sure to use tape on the connectors

BNC 100% Copper Connectors - Competitors use Zinc Alloy. Copper connectors offer higher conductivity, better performance at high frequencies (HD Video and long distances) and much lower attenuation

Features

Real RF Shielded Cable
Shielded RF cable offers greater noise immunity
TURBOHD passive transceiver kit
Real-time transmission via UTP cat 5e/6 cable
No power required
Compatible video formats NTSC, PAL, SECAM
Compatible with analog / TurboHD (TVI) cameras
Built-in overvoltage protection
Anti-static wave filter design
60 dB noise immunity

Physical Specifications

BNC male connectors
Pin type terminals for UTP cable
Impedance 75 ohms
Color: Black
Operating temperature: -20°C to 70°C
Dimensions (L x W x H): 35.1 x 16.7 x 18.7 mm
Weight: 40 grams

Applications

CCTV monitoring and recording systems
200 meter HD-TVI 5MP transmission
150 meter HD 4K transmission

*Price per Kit

Download the technical data sheet here
