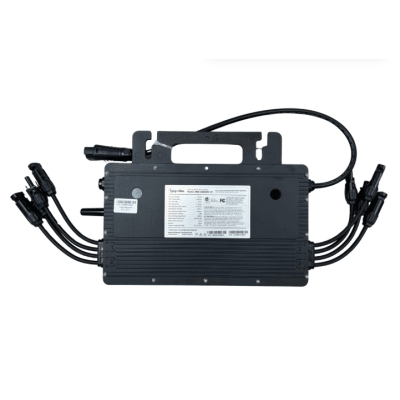

Microinversor 2 kW, Wi-Fi, 220 Vca, para interconexión a red eléctrica, IP67, conexión para cable troncal, soporta sobredimensionamiento a 4 módulos de hasta 670 W
- SKU HMS2000DW4T
- Categoria Energía / Herramientas > Energía Solar > Inversores Interconexión (On Grid), WiFi
Monitoring and management via app or PC using the DTUPROS
IP67 Ideal for outdoor installation under the same module mounting
Monitoring platform through DTUPROS with daily generation graphs
Includes WIFI
Specifications
- Direct Current (DC) Input Data
- Max Photovoltaic Power: 4 x 670 W
- Max Input Voltage (Voc): 65 Vcc
- Max Direct Current: 4 x 16 A
- Alternating Current (AC) Output Parameters
- Max Output Power: 2000 W
- Nominal AC Output Voltage: 220 Vca
- Max AC Current: 9.09 A
- General Data
- Max Efficiency: 99.8 %
- Nominal Frequency/Ranges: 55 - 65 Hz
- Dimensions: 310 x 185 x 40.6 mm
- Weight: 4.5 Kg
- Number of units per branch: 3 Microinverters
- Certifications: UL1741, IEEE1547
HOYMILES Microinverters
- Dual MPPT
- Aluminum heat sink
- 4 pairs of MC4 connectors
- Installation in confined or difficult areas
- Scalable
- Super lightweight
MHS-2000-4T Microinverter
The Hoymiles Microinverter is the world's first 220 Vca microinverter for up to 4 modules of 625 W with dual MPPTs offering us:
- Low investment cost
- Independent panel connection and generation
- Ultra-fast startup
- Real-time notifications
- Remote performance monitoring with DTU
More Power
Microinverters are mounted on the same structure as the modules, and module connections are made via their own connectors, making installation truly simple.
- High efficiency, excellent benefit
- Maximum conversion efficiency, up to 95%
- Make the most of solar power with MPPT technology
CONNECTION DIAGRAM
