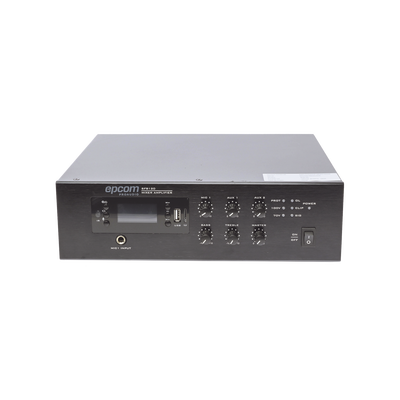

Mini Audio Mixer Amplifier | 120W RMS | 70/100V System | MP3 | Tuner | Bluetooth | Background Music and Paging
Mini Audio Mixer Amplifier | 120W RMS | 70/100V System | MP3 | Tuner | Bluetooth | Background Music and Paging
Disponible:
En Stock
- SKU SF-B120
- Categoria Automatización e Intrusión > Megafonía y Audioevacuación > EPCOM ProAudio
$ 5,546.12 MXN
Sistema 70/100V
Paging
Background Music
Bluetooth/MP3
SD Card
Tuner
General Features
- Desktop design, elegant appearance, lightweight and easy to carry.
- 1 Microphone input with independent volume control.
- Automatic MP3 playback and microSD memory.
- Microphone priority function: when microphone 1 is activated, audio is muted.
- Short circuit, overload and high temperature protection.
- USB playback for MP3 formats, microSD card, tuner and Bluetooth.
- Individual audio and paging control.
Audio Features
- Speaker output: 70v / 100v
- Sensitivity and input source: MIC input: + 5mV, unbalanced 6.3 jack. Auxiliary input: 350mV, unbalanced RCA connector
- Frequency response: 80Hz -16KHz (-3db)
- T.H.D: related output power, 1% distortion rates
Physical and Electrical Characteristics
- Rated output power: 120 W
- Input power: 110VAC 50/60 Hz
- Power consumption: 180 W
- Dimension: 300 x 88 x 250 mm
- Protection: against overheating, short circuits and overload
- Weight: 3.9 Kg.
Note:
- It is necessary to use voltage regulators for the amplifier installation if the outlet voltage is higher than 127Vac.
- Do not connect more than 80% of the load to the amplifier, e.g., if the amplifier's power is 120W, only connect a maximum of 96W (20% safety margin).
Wiring Diagram
Videos
Sistema 70/100V
Paging
Background Music
Bluetooth/MP3
SD Card
Tuner
General Features
- Desktop design, elegant appearance, lightweight and easy to carry.
- 1 Microphone input with independent volume control.
- Automatic MP3 playback and microSD memory.
- Microphone priority function: when microphone 1 is activated, audio is muted.
- Short circuit, overload and high temperature protection.
- USB playback for MP3 formats, microSD card, tuner and Bluetooth.
- Individual audio and paging control.
Audio Features
- Speaker output: 70v / 100v
- Sensitivity and input source: MIC input: + 5mV, unbalanced 6.3 jack. Auxiliary input: 350mV, unbalanced RCA connector
- Frequency response: 80Hz -16KHz (-3db)
- T.H.D: related output power, 1% distortion rates
Physical and Electrical Characteristics
- Rated output power: 120 W
- Input power: 110VAC 50/60 Hz
- Power consumption: 180 W
- Dimension: 300 x 88 x 250 mm
- Protection: against overheating, short circuits and overload
- Weight: 3.9 Kg.
Note:
- It is necessary to use voltage regulators for the amplifier installation if the outlet voltage is higher than 127Vac.
- Do not connect more than 80% of the load to the amplifier, e.g., if the amplifier's power is 120W, only connect a maximum of 96W (20% safety margin).
Wiring Diagram
Videos
