Mini OTDR para Fibra Óptica Monomodo / Longitud de Onda 1310nm y 1550nm / Función VFL 10mW / Función OPM / Mapeo de Cables de Red RJ45 / Recargable / Distancia de Prueba hasta 64 Kilómetros
- SKU LP-M-OTDR
- Categoria Cableado Estructurado > Fibra Óptica > Herramientas

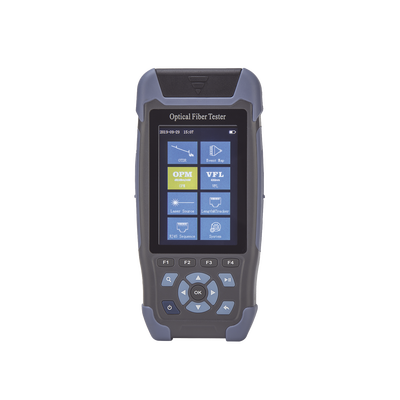

The LP-M-OTDR-PRO Mini Pro has a 3.5” color screen. The operation interface is simple and easy to operate. It integrates OTDR, stable light source, optical power meter, visual fault location, cable sequence, cable length, cable tracker, and flashlight.
It adopts intelligent power saving management, a super long measurement time of 12 hours to ensure field testing and maintenance work efficiently. It is used to measure the length, loss, connection quality, and other parameters of RJ-45 cables and optical fiber.
Includes
- OTDR
- Case
- USB Charger
- Calibration certificate
- ST connector adapter
- Network cable tracker
- User manual
NOTE: It is recommended to use with a launch coil to eliminate the dead zone and improve measurement accuracy: LP-LC-SM-1KM
OTDR Main Features
- Compatible with Single-mode Fiber Optic.
- Wavelength: 1310nm, and 1550nm.
- Dynamic range: 24dB/22dB.
- Loss analysis: 4 and 5-point method.
- Event dead zone: 3 meters.
- Laser safety level: Class II.
- Support SC, FC, and ST connectors.
- RJ45 network cable mapping.
- Operating temperature: -10ºC to 50ºC.
- 4000mAh Lithium-ion polymer battery.
Visual Fault Locator (VFL)
- Wavelength: 650nm.
- Output power: >10mW
- Mode: CW/1Hz/2Hz
- Compatible connector: FC, ST, and SC
Optical Power Meter (OPM)
- Wavelengths: 800nm to 1700nm
- Test range: -50dBm to 26 dBm.
- Calibration wave: 850nm / 980nm / 1300nm / 1310nm / 1490nm / 1550nm /1625nm / 1650nm.
- Compatible connector: FC, ST, and SC.
