Mini OTDR Táctil para Pruebas en Enlaces de Fibra Óptica Activos (Prueba de Fibra Viva) / Longitud de Onda 1625nm / Incluye Función OPM / Incluye Función VFL 5mW / Mapeo de Cables RJ45 / Recargable / Distancia de Prueba hasta 100 Kilómetros (328084 pies)
Review: 5 -
Rated 5/5 based on 11 customer reviews
"Excelentes productos" by , written onJun 4, 2021
Los productos siempre en tiempo y forma.
Vigilancianetwork 1

Mini OTDR Táctil para Pruebas en Enlaces de Fibra Óptica Activos (Prueba de Fibra Viva) / Longitud de Onda 1625nm / Incluye Función OPM / Incluye Función VFL 5mW / Mapeo de Cables RJ45 / Recargable / Distancia de Prueba hasta 100 Kilómetros (328084 pies)

Disponible: En Stock
$ 19,783.41 MXN

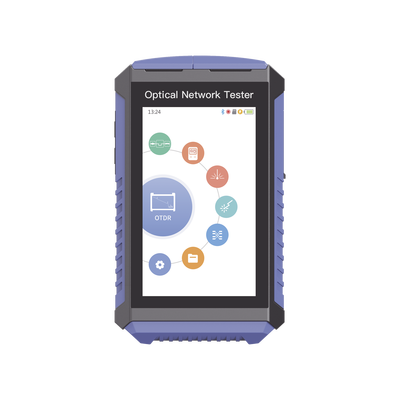

The LP-M-OTDR-LF can perform testing on live fiber optics. It is compact and easy to carry, featuring a 4.3" high-definition touchscreen that supports multi-touch and smooth operation. The OTDR function is standard with a single wavelength and a built-in efficient wavelength isolator, capable of performing optical tests on the link with a minimum event dead zone of 1.5m and a maximum measurement range of 100km. It is used to measure fiber optic length, loss, connection quality, and other parameters. It can easily test for breakpoints, bends, and loss in the fiber optic link.

Includes

  • OTDR
  • Case
  • USB Charger
  • Calibration Certificate
  • Adapter for ST connector
  • Network Cable Tracker
  • User Manual
  • 8 GB Micro SD Card

NOTE: It is recommended to use it with a launch coil to eliminate the dead zone and improve measurement accuracy: LP-LC-SM-1KM

OTDR Main Features
  • Compatible with Single-mode Fiber Optic
  • Wavelength: 1625nm
  • Dynamic Range: 20dB
  • Loss Analysis: 4 and 5-point method
  • Event Dead Zone: 1.5 meters
  • Laser Safety Level: Class II
  • Supports SC/PC connectors
  • RJ45 Network Cable Mapping
  • Operating Temperature: -10ºC to 50ºC
  • 4000mAh Lithium-ion Polymer Battery
  • Stable Light Source of -5 dBm
Visual Fault Locator (VFL)
  • Wavelength: 650nm
  • Output Power: >10mW
  • Mode: CW/1Hz/2Hz
  • Compatible Connector: FC, ST and SC
Optical Power Meter (OPM)
  • Wavelengths: 800nm to 1700nm
  • Test Range: -50dBm to 26 dBm
  • Calibration Wavelength: 850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm / 1650nm
  • Compatible Connector: FC, ST and SC

Download the technical sheet here
