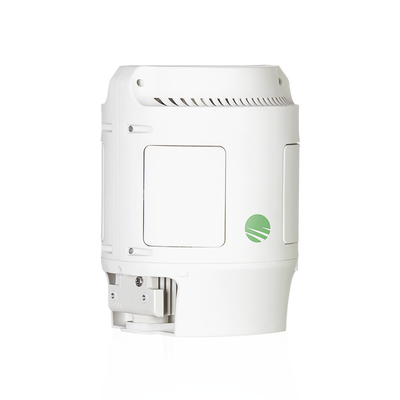

Terragraph, 3rd Generation, Multiroute Mesh Node, 360º Coverage, 15 Gbps, 60 GHz License-Free Band, 60 Terminals

Technological Features

• Operation mode: Integrated PTP Backhaul, PtMP Access, MESH with autonomous transport network.

General Features

• Transmission: Millimeter waves with narrow beams without interference.
• Immune: To interference.
• Operation mode: PTP Backhaul, PtMP Access, MESH with autonomous transport network.
• Capabilities: Massive available spectrum.
• Supports: SmartHaul Runner for stress-free growth and full availability with multiple routes.
• Capabilities: Multigigabit up to 22 Gbps.
• Spectrum: Available radio electric.
• Deployments: Wireless internet access at maximum speed.
• Systems: Highly secure and fast megapixel video surveillance.
• Connectivity: Between buildings, homes and businesses at fiber speed but wirelessly.
• Optimization: Of costs, time savings, elimination of permits, fast return on investment compared to fiber deployments.
• Security: Hacker-proof with AES encryption.
• Programming: Very simple and friendly, practically Plug & Play.
• Backhaul: Integrated between nodes for fast deployments.
• Implementation: As an independent central node and in mesh mode for redundancy and security with other nodes.
• Speeds: Gigabit to homes, offices, schools, businesses, monitoring centers, etc.
• Ideal: For dense environments in urban, suburban and metropolitan areas.
• Compatible: With Siklu's WiNDE design tool.
• Management: Installable system on server (on-premises) or in the cloud (cloud).
• Range: Up to 450m with high availability in rainy environments.
• Latency: Lowest on the market 0.1ms (100).
• Prepared: For future growth +5.5 Gbps per sector for 2.5 Gbps services to terminals (coming soon).

Technical Specifications

• Operation mode: PTP, PtMP, Mesh with autonomous transport network.
• Coverage: 4 sectors of 90º for total 360º coverage.
• Capacity: 5.5 Gbps per sector, 22 Gbps per node.
• Range: Typical 300 m node to node, 450 m node to terminals.
• Coverage: Horizontal 90º, vertical 50º, per sector.
• Frequency: 57-66 GHz, TDD/TDMA.
• Synchronization: GPS.
• Channels: 4 non-overlapping channels, 2160 MHz per channel.
• Modulation: 10 levels of adaptive modulation and coding.
• Switch: Integrated L2 layer for ease and cleanliness of installation.
• ETH1 RJ45 port: 1/2.5/5/10 GbE with PoE-In.
• ETH2 RJ45 port: 1 GbE + PoE out with 35W.
• ETH3 SFP+ port: 10 GbE for SMF single-mode or MMF multi-mode fiber.
• Security: AES 128 bits, GUI over HTTPS, CLI over SSH.
• Temperature range: -45º to 55º C / -49º to 131º F.
• Power: 802.3bt or passive 55 Vdc.
• Consumption: 55 W without PoE out, 90W with PoE out.
• IP Rating: IP67 for extreme weather.
• Dimensions: 23.6 cm height x 18.6 cm diameter.
• Weight: 3.6 Kg.
