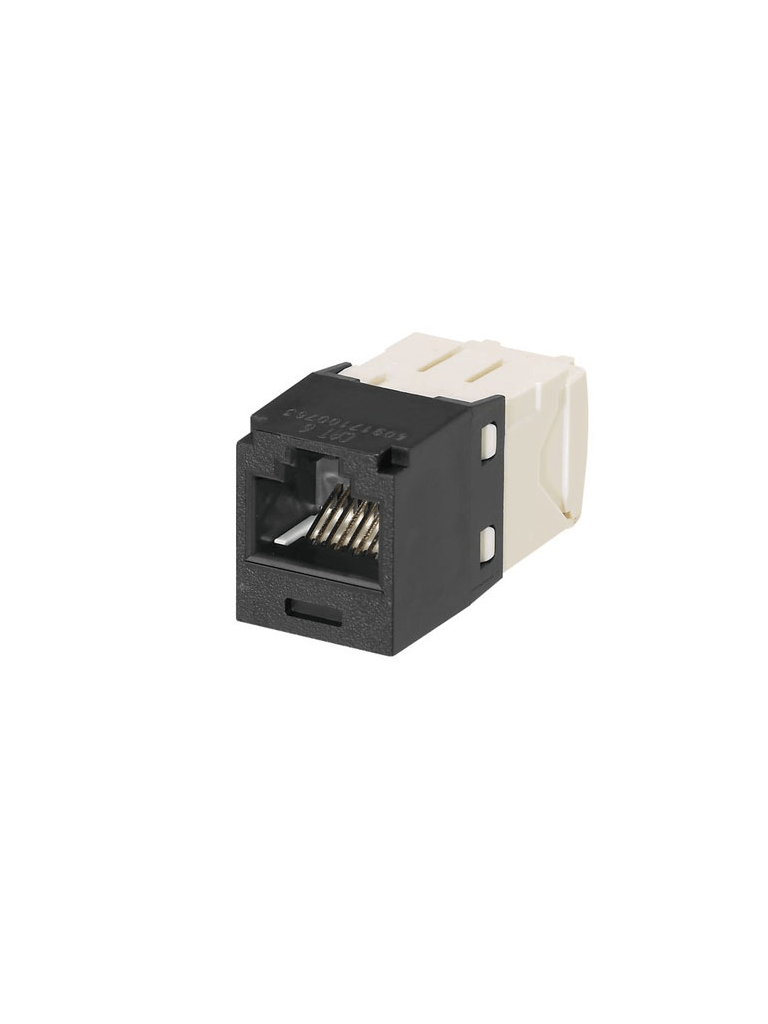

PANDUIT CJ688TGBL - Módulo jack Mini-Com con terminación estilo TG / UTP RJ45 Categoría 6 / Negro
- SKU CJ688TGBL
Key Features
The CJ688TG Jack Module is a Category 6/Class E connector designed for unshielded 4-pair UTP cables with 22 to 26 AWG gauge. This module allows cables to be terminated without the need for impact tools, maintaining the cable's pair geometry and eliminating conductor untwisting. Its modular and optimized design allows for easy installation in faceplates, patch panels, and wall mount boxes.
Specifications
General Features
- Giga-TX™ Technology: Optimizes performance and reduces installation time by eliminating conductor untwisting
- Interface: Standard RJ45 for quick plug and play connection with RJ45 patch cables
- Identification: Labels and icon options for easy port identification
- Serialization: Quality control number for future traceability
Channel and Component Performance
- Category: Exceeds Category 6/Class E requirements at frequencies from 1 to 250 MHz
- Compliance: ANSI/TIA-568.2 D, ISO 11801 Class E, and ANSI/TIA-1096-A
- Contact Material: 50 microinches of gold for superior performance
- PoE/PoH Compatibility: Supports IEEE 802.3af, 802.3at and 802.3bt type 3 and 4; supports Power over HDBaseT up to 100 W
- c(UL)us Listed: UL 1863 and UL 2043 for air-handling spaces
Operating Range and Environment
- Operating temperature: -10 °C to 75 °C
- Conductor termination range: 22 - 26 AWG gauge, maximum diameter of 1.52 mm
- Cable outer diameter: Between 5.8 mm and 8.38 mm
Test Results
Mechanical Tests
- Normal Force: ANSI/TIA-1096-A, load > 100 g
- Durability and mating cycles: IEC 60603-7, > 2500 insertions
- Vibration and shock: Circuit resistance < 40 mΩ
Electrical Tests
- Low-level circuit resistance: < 20 mΩ
- Dielectric withstand voltage: 1000 VAC, 1 minute
Environmental Tests
- Temperature, humidity, and gas corrosion life: Circuit resistance < 40 mΩ
Includes
- CJ688TG Jack Module
- Termination cap with color code for T568A and T568B schemes
Forum
For support and help with the CJ688TG Jack Module, consult the help forum at TVCenlinea.com, where you will find resources, experiences from other users, and expert answers on the installation and use of the module.
