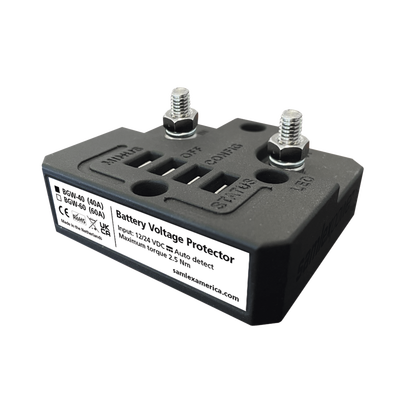

Battery Guard 12/24V Waterproof 40 A

Disponible: En Stock
$ 2,086.23 MXN

Key Features

  • Prevents battery over-discharge
  • Programmable voltage ranges via jumpers
  • Effective overvoltage protection
  • Automatic battery voltage detection
  • Robust waterproof design (IP66)
Electrical Specifications
  • Maximum Continuous Current: 40A (45A cutoff)
  • Peak Current: 300A (0.7 sec)
  • Operating Voltage: 8-19 VDC (12 VDC) / 20-35 VDC (24 VDC)
  • Current Consumption: 3.2mA
  • Voltage Drop: 40 mV at 40A
  • Current Accuracy: ±10%
  • Voltage Accuracy: ±2%
Physical Characteristics
  • Enclosure Type: IP66 (Waterproof)
  • Covering: Polyurethane Rubber PU552
  • Dimensions: 62 x 72 x 32 mm (2.44 x 2.83 x 1.26 in)
  • Weight: 0.2 kg (0.4 lb)
Protection and Certifications
  • Overvoltage, overcurrent, and temperature protection
  • Automatic voltage detection
  • Certifications: CE, UKCA, RoHS
  • Complies with EN 61000-6-3:2007 and EN 61000-6-2:2005

Applications

Ideal for marine systems, recreational vehicles, solar systems, and industrial applications where reliable battery protection against deep discharges and harsh environmental conditions is required.

Download the datasheet here
