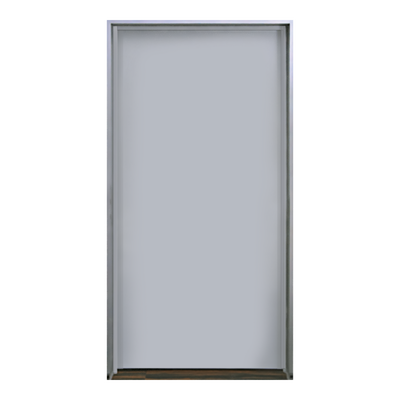

Galvanized metal door 3'0" x 7'0" / Fire resistant for 180 min. / Prepped for cylindrical lock and reinforced for door closer

Special Features

• Mechanically interlocked for added strength and rigidity
• Honeycomb core provides natural strength
• Inverted channels, ends welded to both face sheets

Door Description

• 180 min. fire resistant.
• 1-3/4” thick.
• Honeycomb interior.
• "Interlocked" joints.
• "Top/Bttm" inverted channels.
• 7 gauge hinge reinforcement.
• Anti-corrosion "Prime" finish.
• Standard preparations.
• STC 32 (in 18 gauge).
• "Interlocked" joints.
• UL certified.
• Gauge: 18
• 1,000,000 use cycles in 18 gauge.
• Dimensions: 3’0” x 7’0”. (of the door only)
• The required opening to install the door with jambs and frames is 1025 x 2190 mm

ESSENTIAL ACCESSORIES

(Strike Jamb, Hinge Jamb, Head, and 3 Hinges):

Determine the door type (see image below)

• Right-Hand Door: 5061 (strike jamb), 5055 (hinge jamb).
• Left-Hand Door: 5062 (strike jamb), 5056 (hinge jamb).
• Head required: 5066
• Requires 1 pack of hinges model 5040 (contains 3 pcs) or model MX105155 (contains 3 pcs).

ADDITIONAL ACCESSORIES

For the door to be fire-rated, additional accessories are required:

• Perimeter seal: model 5018.
• Threshold: 5020A, or 5024 (option with stop).
• Under-door seal: 5016 or 5032 (with rubber).
• Drip cap: 5036, (for use on doors facing outwards).
• Door closer: 84887

*Optional emergency door bar, mechanical lock, and signage can be used.

Product made to order
