Punto de Acceso Wi-Fi 7 / 3.57 Gbps / MU-MIMO 2x2 (2.4GH y 5GHz) / Smart Antenna para mayor cobertura / Instalación en techo y pared / Seguridad WP3 / 1 Puerto 2.5GE / Puerto USB (Para expansión IoT) / Con Administración Gratuita

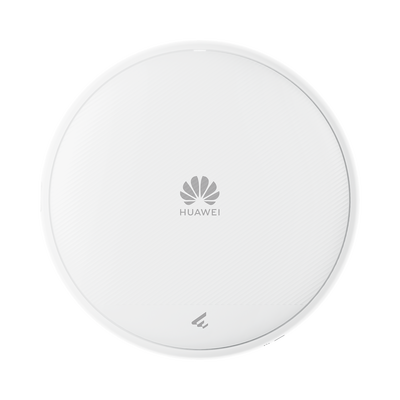

AP371 eKit: Wi-Fi 7 power and efficiency for any indoor space

The Huawei eKitEngine AP371 is a next-generation indoor access point (AP) compatible with Wi-Fi 7 (802.11be). It provides services simultaneously on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands, supporting a total of 4 spatial streams and achieving a device speed of up to 3.57 Gbps.

The AP is equipped with new Wi-Fi 7 technologies and integrated intelligent antennas to deliver always-on Wi-Fi signals, which significantly enhances users' wireless network experience.

These advantages make the eKitEngine AP371 an ideal choice for indoor coverage environments, such as small and medium-sized enterprise (SME) offices, hospitals, shopping malls, and supermarkets.

• (1) PoE in 10/100/1000/2500 Mbps Ethernet port
• (1) Reset button
• (1) USB port
• (1) DC power input
• Operation mode: Access Point
• Frequencies: 2.4 and 5 GHz
• MU-MIMO 2x2
• Gain: 2.4 GHz 4 dBi / 5 GHz 5 dBi
• Power: 2.4 GHz 23 dBm / 5 GHz 23 dBm
• Wireless Security: WEP, WPA/WPA2-PSK, WPA3-SAE, WPA/WPA2-PPSK, and WPA/WPA2/WPA3-802.1
• Management: web interface, CLI, cloud, APP or physical controller
• Number of clients: 256 maximum, 150 recommended
• Coverage: Up to 20 meters radius

• Dual band: 2.4 and 5 GHz
• Number of SSIDs: 10
• Power supply:
  PoE 802.3af/at (Not included, model: AD-560062T0E is recommended)
  DC 12V: (Not included, model: PSD1202D is recommended)
• Dimensions: Φ180 mm x 35 mm
• Weight: 0.45 kg
• Maximum consumption: 13.6 W (Excluding USB port)
• Operating temperature: –10°C to +50°C
• Operating humidity: 5% to 95% (Non-condensing)

• Smart Antenna (Up to 20% more coverage)
• Beamforming
• Bandsteering
• AI-based Wi-Fi optimization
• Client isolation
• Automatic channel scanning to mitigate interference
• Smart and fast Roaming
• Wi-Fi schedules
• AI troubleshooting from SNC cloud
• Supports MESH networks

• (1) AP371 Access Point
• (3) Screws
• (3) Anchors
• (1) Ceiling or wall mount

• PoE Injector: AD-560062T0E
• DC Power Supply: PSD1202D

Smart Antenna in eKit Access Points

The Smart Antenna function included in this access point is an advanced antenna feature that improves wireless signal coverage, accuracy, and efficiency, gaining up to 20% more coverage.

Stable Connectivity and Low Latency

Thanks to the Multi-RU function, the device optimizes wireless resource allocation, allowing for more efficient and simultaneous data transmission between multiple devices. This results in millisecond-level latency, offering a fluid and stable experience, ideal for real-time applications, video calls, streaming, and high-demand connectivity environments.

AI-powered intelligent optimization

Capable of automatically adjusting network parameters. Its exclusive radio calibration algorithm performs precise power and frequency tuning with a single click, reducing interference and strengthening the signal for superior wireless performance.

Industry Technology Leader

Thanks to 4096-QAM modulation technology, the access point is capable of delivering a data rate up to 1.2 times higher compared to previous generations, optimizing wireless spectrum usage. This translates to greater speed, better stability, and a superior user experience, even in environments with high density of connected devices.

Flexible and cost-free remote management

Flexible management methods: from the web interface, APP (iOS/Android/Harmony OS) and from the Huawei eKit SNC cloud.

Share projects for specific clients, manage and provide remote technical support without extra payments, as the eKit platform is completely free.

AI Troubleshooting

The important thing about technical support or troubleshooting is to do it quickly and effectively. Huawei is revolutionizing this with the AI (Artificial Intelligence) powered troubleshooting function, providing a network diagnosis across its different parameters in a matter of minutes, indicating problems and possible solutions for each of them.

Plan and simulate your Wi-Fi network precisely using WLAN Planner

To size a Wi-Fi network with a deliverable file for the end-user, you can use Huawei's WLAN Planner tool, where you can draw the site's walls according to their material to simulate the coverage that will be obtained based on the Wi-Fi access points you select.

Configure and manage your eKit network from the mobile app

With the following QR code, you can download the Huawei eKit application where you can register devices such as routers, switches, and access points from the eKit line in minutes, and deploy networks with the convenience of your smartphone.

Available for iOS, Android, and Harmony OS.

Robust network security (WPA3)

It integrates high levels of encryption and advanced security mechanisms, providing solid protection for the network and transmitted information. This helps prevent unauthorized access, protect user data, and ensure reliable and secure connections at all times.
