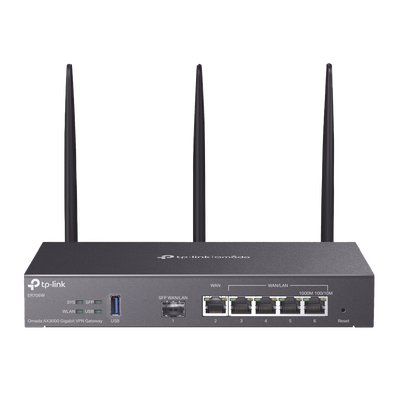

Router Omada VPN / SDN Multi-WAN Gigabit / 1 puerto WAN SFP Gigabit / 1 puerto WAN RJ45 Gigabit / 2 puertos LAN RJ45 Gigabit / 2 puertos configurables LAN/WAN / 150,000 sesiones concurrentes / Administración centralizada Omada o independiente
Review: 5 -
Rated 5/5 based on 11 customer reviews
"Excelentes productos" by , written onJun 4, 2021
Los productos siempre en tiempo y forma.
Vigilancianetwork 1

Router Omada VPN / SDN Multi-WAN Gigabit / 1 puerto WAN SFP Gigabit / 1 puerto WAN RJ45 Gigabit / 2 puertos LAN RJ45 Gigabit / 2 puertos configurables LAN/WAN / 150,000 sesiones concurrentes / Administración centralizada Omada o independiente

Disponible: En Stock
$ 2,880.93 MXN

Advanced Features for a Next-Generation Network.

Enterprise-level WiFi 6 up to 3.0 Gbps, ideal for small and medium businesses.

Seamless Mesh WiFi: extend your WiFi network without wiring (special applications).

Multifunctional ports for improved network performance.

Specifications

Physical Specifications
  • Dimensions: 226 x 131 x 35 mm (antenna dimensions not included)
  • Reset Button: Yes
  • Web Management: Yes
  • Max Consumption: 22.7 W (with USB connected) / 18.2 W (without USB connected)
  • Power: 12 Vdc, 2 A
  • Flash: 128 MB NAND
  • DRAM: 512MB DDR4
  • MAC Cloning: Modify WAN MAC address
  • Concurrent Sessions: 150,000 sessions
Connectivity
  • Ports:
    • (1) Gigabit SFP WAN/LAN port
    • (1) 1Gbps RJ45 WAN port
    • (4) Gigabit RJ45 WNAN/LAN ports
    • (1) USB 3.0 port
  • WAN Connection Type:
    • Static/Dynamic IP
    • PPPoE
    • PPTP
    • L2TP
    • Mobile Broadband
  • NAT Speed (Static IP):
    • Upload: up to 937.2 Mbps
    • Download: up to 936.1 Mbps
  • IPv6/IPv4: WAN Connection
Advanced Features
  • VPN:
    • OpenVPN 55 tunnels
    • IPSec 100 tunnels
    • PPTP 50 tunnels
    • L2TP 50 tunnels
    • WireGuards 20 tunnels
    • SSL 50 tunnels
  • Filtering:
    • Web Group Filtering
    • URL Filtering
    • Web Security
  • ARP Inspection:
    • GARP Packet Sending
    • ARP Scanning
    • IP-MAC Binding
Management and Security
  • WEB Authentication:
    • Simple Password
    • Hotspot (Local User/Voucher/SMS/Radios)
    • External Radius Server
    • Facebook Login
    • Instagram Tracking
  • Centralized Management:
    • OC300
    • OC200
    • Omada Software
    • Cloud-based Omada
  • IPTV: IGMP v2/v3 proxy, bridge mode, custom mode
Additional Information
  • Operating Temperature: 0 - 40° C
  • Certifications: CE, FCC, RoHS
  • Warranty: 5 years
  • Package Contents:
    • ER706W
    • Power Adapter
    • Installation Guide

Download the technical sheet here
