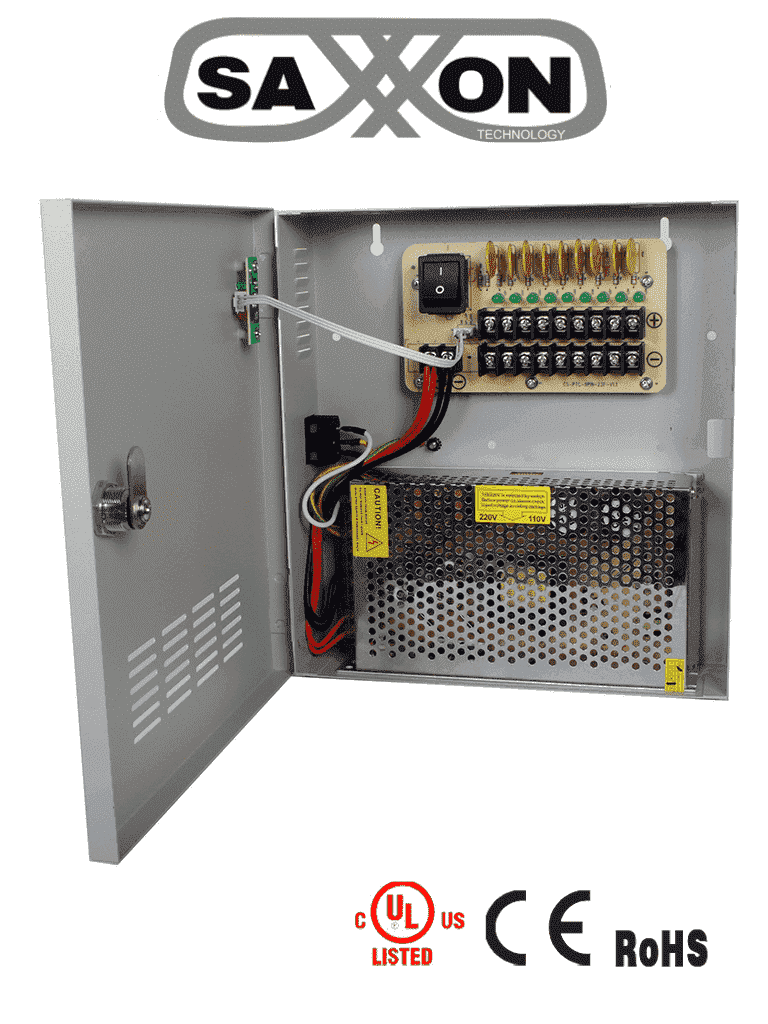

SAXXON PSU1220-D9 - Fuente de alimentación de 12 VCC/ 20 Amperios/ Para 9 Cámaras/ 2.2 Amperios por Canal/ Protección contra Sobrecargas/ Certificación UL/
- SKU PSU1220-D9
- Categoria CCTV Industrial > Fuentes de Energía > Fuentes con Distribuidor
General information.
The model power supply PSU12V20A9C is more than a power supply, it is a centralized power distributor with a robust metal casing with ventilation slots without neglecting aesthetics. The box has anti-static and anti-interference protection, powers 9 CCTV cameras with individual LED output indicator providing 12V AC output voltage, each output is independently protected by a ceramic fuse or PTC that protects our cameras.
Specifications.
- Input voltage 120VAC
- Input current 4A
- Output voltage 12VDC
- Output channels 9CH
- Output of each channel 2.2A
- Maximum current for PTC fuse 2.5A
- Dimensions 240х260х60MM
- Cover material Metal
Download technical sheets/manuals
