SBE TECH SBE-CONPPSCSM - Prepolished SC SM connector for 9µm, UPC, 2mm, singlemode
- SKU SBE-CONPPSCSM
General Information
An SC UPC (Subscriber Connector Ultra Physical Contact) connector is a type of optical connector used in fiber optic applications to connect fiber optic cables to devices such as transceivers, patch panels, network equipment, among others. Here are some functions for which an SC UPC connector is used:
- Fiber optic connection: The SC UPC connector is used to establish precise and reliable connections between the ends of fiber optic cables. This allows the transmission of optical signals between devices in a fiber optic network.
- High connection quality: The physical design of the SC UPC connector ensures a high level of precision and contact between the optical fibers, which minimizes insertion and reflection losses of the optical signal. This guarantees efficient and reliable data transmission through the connection.
- Standard compatibility: The SC UPC connector complies with international telecommunications industry standards, which guarantees its compatibility with a wide range of network equipment and components that also comply with these standards. This facilitates interoperability between different devices and systems in a fiber optic network.
- Diverse applications: The SC UPC connector is used in a variety of fiber optic applications, including telecommunications networks, data centers, video surveillance systems, data transmission systems, and other applications where a high-quality connection with low optical signal loss is required.
- Easy installation and maintenance: SC UPC connectors are easy to install and maintain. Their quick-latch design allows for quick connection and disconnection without the need for special tools. In addition, SC UPC connectors are durable and reliable, which reduces the need for frequent maintenance.
Description

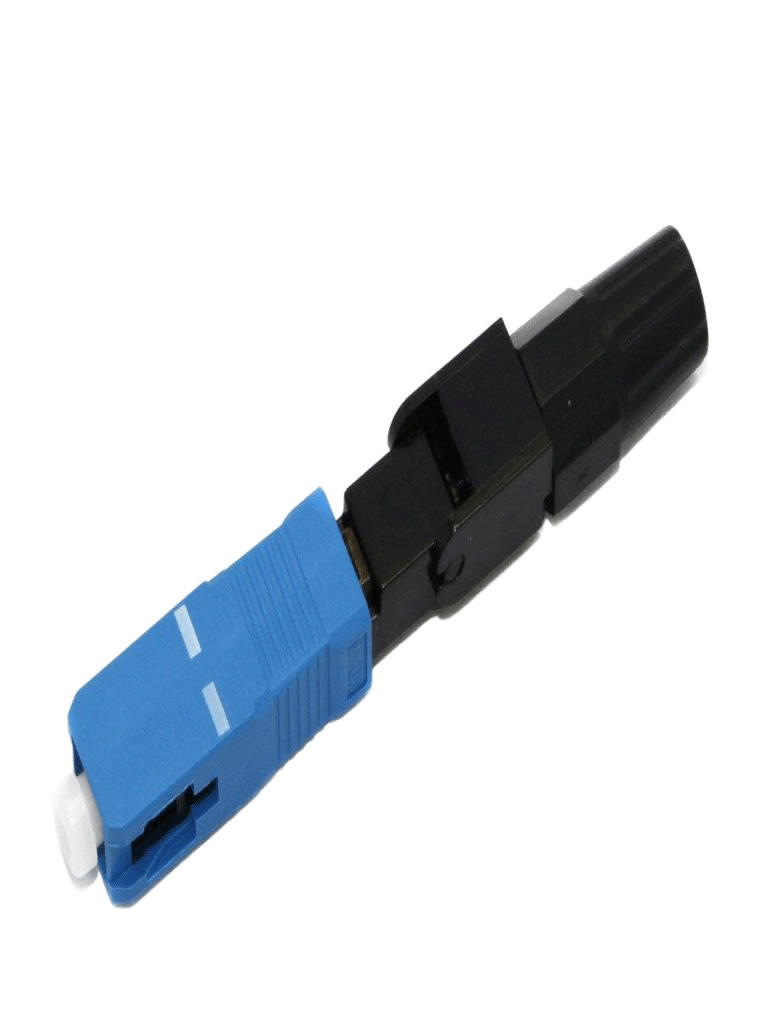

Pre-polished SC connector for single-mode fiber optic, quick installation, available for termination on 900 μm tight buffer and 3mm jacketed cable, reusable and high durability, excellent choice for single-mode fiber optic termination.
Technical Specifications
Specifications
Connector type: Simplex SC/UPC
Connector color: Blue
Connector material: Plastic
Ferrule diameter: 2.5 mm
Technical information
Ferrule concentricity: SM<1 μm
Ferrule diameter tolerance: ±10 μm
Ferrule inner diameter tolerance: ±0.5 μm
Splice capsule with gel as moisture blocker
Features
Fiber type: SM G.625D
Fiber diameter: 125 μm
Insertion loss: <0.25 db
Storage temperature: -40 °C + 85 °C
Operating temperature: -40 °C + 75 °C
*If you have questions about fiber optics or would like a basic course on connectorization or fiber optic use, please contact me (alonso.mendez@tvc.mx)
Includes:
1 SC UPC connector for SINGLEMODE fiber optic
