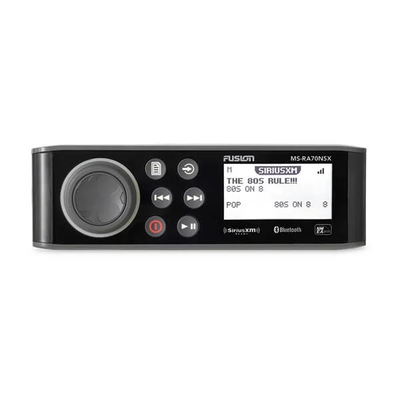

The Fusion MS-RA70 marine audio system is an advanced solution for nautical environments, designed to deliver high-quality performance with innovative features. Equipped with a 2.6' monochrome LCD display, Multi-Zone™️ technology to control two audio zones, and a peak power of 200 W, this system is ideal for vessels that require powerful and versatile audio. In addition, it features Bluetooth® and ANT® connectivity, SiriusXM and DAB+ compatibility, and IPX7 water resistance to ensure its durability in marine conditions.
Key Features
Features
- Optically bonded 2.6' monochrome LCD display
- Multi-Zone™️ technology for 2 audio zones control
- 200 W peak power
- Bluetooth® and ANT® connectivity
- SiriusXM and DAB+ compatibility
- IPX7 water resistance (front panel only)
- Software updates via USB
Technical Details
Specifications
-
Dimensions: 7.4' x 2.36' x 4.87' (188 x 60 x 123.5 mm)
-
Weight: 1.23 lbs (556 g)
-
Operating temperature: 32° to 122° F (0° to 50° C)
-
Maximum current: 15 A
-
Power input: 10.8 - 16 VDC
-
Compass safe distance: 5.9' (150 mm)
Interfaces and Connectivity
-
Auxiliary inputs (RCA): 1
-
NMEA 2000® ports: 1 (MS-RA70N and MS-RA70NSX only)
-
USB 2.0 ports: 1
-
SiriusXM ports: 1 (MS-RA70NSX only)
-
Antenna ports: 1
-
Speaker connections: 4 (amplified for 2 zones)
-
RCA pre-out (left, right, and subwoofer): 2 zones (requires external amplification)
-
Line output: 2 (L + R per zone, requires external amplification)
-
Subwoofer output: Zone (requires external amplification)
Applications and Use Cases
Recreational Vessels
Ideal for yachts and recreational boats requiring a powerful and versatile audio system.
Coastal Navigation
Perfect for vessels sailing in coastal waters, with IPX7 water resistance.
Nautical Events
Excellent for events at sea, with Multi-Zone™️ technology to control different audio areas.
Download the datasheet here
