Tablilla de Fuente de alimentación de 1 salida 11-15 Vcc 5 A / Compatible con batería de respaldo y temporizador integrado / Voltaje de entrada 96-264 Vca
Tablilla de Fuente de alimentación de 1 salida 11-15 Vcc 5 A / Compatible con batería de respaldo y temporizador integrado / Voltaje de entrada 96-264 Vca
Disponible:
En Stock
- SKU PL12DC5ABK-B
- Categoria Control de Acceso > Fuentes de Alimentación > Fuentes de Respaldo
$ 329.49 MXN

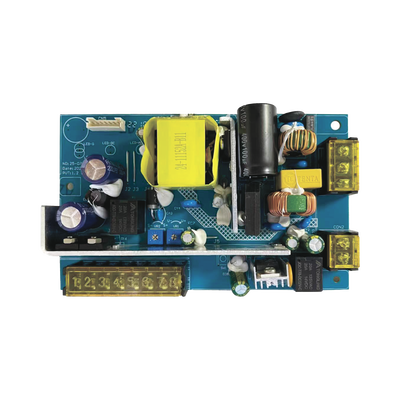

Power Supply Board 1 Output 11-15 VDC 5 A
Brand: EPCOM POWERLINE | Model: PL12DC5ABKB
Description:
11-15 VDC, 5 A power supply board, 1 output with integrated 0-45 second timer, with backup capability for CCTV and Access Control applications.
Main Features
- Input voltage: 96-264 VAC
- Adjustable output: 11-15 VDC @ 5 A
- Integrated timer: 0-45 seconds
- Backup capacity: 12 VDC @ 4.5 Ah, 7 Ah, 9 Ah battery (not included)
- Applications: CCTV or access control systems
Technical Specifications
- Input: 96-264 VAC
- Output: 11-15 VDC @ 5 A
- Battery capacity: 12 VDC @ 4.5 Ah, 7 Ah, 9 Ah (not included)
- Timer: 0-45 seconds on output
Operation
Uninterruptible power supply, when AC voltage fails, the battery automatically operates to supply power.
Observations
- It is only the board, cabinet is not included
- Battery not included
- Warranty: 3 years
Power Supply Board 1 Output 11-15 VDC 5 A
Brand: EPCOM POWERLINE | Model: PL12DC5ABKB
Description:
11-15 VDC, 5 A power supply board, 1 output with integrated 0-45 second timer, with backup capability for CCTV and Access Control applications.
Main Features
- Input voltage: 96-264 VAC
- Adjustable output: 11-15 VDC @ 5 A
- Integrated timer: 0-45 seconds
- Backup capacity: 12 VDC @ 4.5 Ah, 7 Ah, 9 Ah battery (not included)
- Applications: CCTV or access control systems
Technical Specifications
- Input: 96-264 VAC
- Output: 11-15 VDC @ 5 A
- Battery capacity: 12 VDC @ 4.5 Ah, 7 Ah, 9 Ah (not included)
- Timer: 0-45 seconds on output
Operation
Uninterruptible power supply, when AC voltage fails, the battery automatically operates to supply power.
Observations
- It is only the board, cabinet is not included
- Battery not included
- Warranty: 3 years
