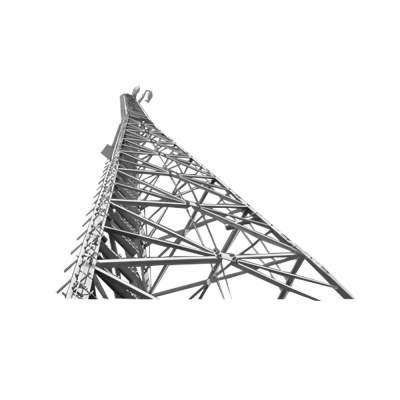

Torre autosoportada. SuperTitan S500 galvanizada de 30 pies (9.15 m) (incluye anclaje)
Torre autosoportada. SuperTitan S500 galvanizada de 30 pies (9.15 m) (incluye anclaje)
Disponible:
En Stock
- SKU TRY-ST-30-S500
- Categoria Radiocomunicación > Torres y Mástiles > Torres Autosoportadas
$ 108,713.06 MXN
The SuperTitan KD is a modular tower that can be erected up to 190 feet tall. This modular system can be configured to create different types of towers, varying in height and load capacity.
The SuperTitan KD design complies with the ANSI-TIA-222 F & G standard.
Specifications
- Type: Self-supporting
- Height of each section: 10' (3m)
- Total Height: 9.15 m (30')
- Model: S-500
- Designed to comply with standard: TIA/EIA-222
| Load capacity | 90 mph (144.8km/hr) | 105 mph (168.9 km/hr) | 120 mph (193.1 km/hr) |
|---|---|---|---|
| Permissible antenna area in square feet (ft²). EIA Rev. Class 1: 0.75' Ice | 124 | 87 | 63 |
| Permissible antenna area in square feet (ft²). EIA Rev. Class 2: 0.75' Ice | 105 | 73 | 52 |
Applications
- Emergency services (police, fire, etc.)
- SCADA systems
- Ideal for base stations with higher load parameters
- Towers for base station installation
SUPERTITAN Line Differentiators
- Maximum height of 190 feet
- New innovative packaging
- Drastically reduced freight costs
- Reduced delivery times
Optimized Packaging System
Typical Tower Installation
Installation in Snowy Conditions
The SuperTitan KD is a modular tower that can be erected up to 190 feet tall. This modular system can be configured to create different types of towers, varying in height and load capacity.
The SuperTitan KD design complies with the ANSI-TIA-222 F & G standard.
Specifications
- Type: Self-supporting
- Height of each section: 10' (3m)
- Total Height: 9.15 m (30')
- Model: S-500
- Designed to comply with standard: TIA/EIA-222
| Load capacity | 90 mph (144.8km/hr) | 105 mph (168.9 km/hr) | 120 mph (193.1 km/hr) |
|---|---|---|---|
| Permissible antenna area in square feet (ft²). EIA Rev. Class 1: 0.75' Ice | 124 | 87 | 63 |
| Permissible antenna area in square feet (ft²). EIA Rev. Class 2: 0.75' Ice | 105 | 73 | 52 |
Applications
- Emergency services (police, fire, etc.)
- SCADA systems
- Ideal for base stations with higher load parameters
- Towers for base station installation
SUPERTITAN Line Differentiators
- Maximum height of 190 feet
- New innovative packaging
- Drastically reduced freight costs
- Reduced delivery times
Optimized Packaging System
Typical Tower Installation
Installation in Snowy Conditions
