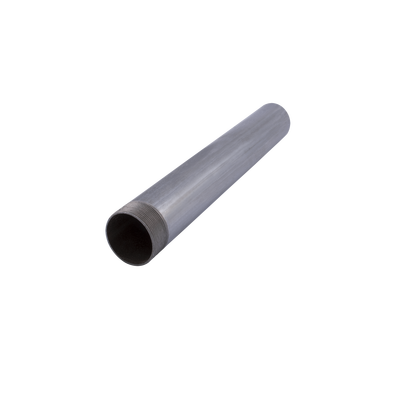

Tubo conduit 1 1/4 Pared Gruesa (32mm) x 3 metros, etiqueta amarilla, calibre 14.
Tubo conduit 1 1/4 Pared Gruesa (32mm) x 3 metros, etiqueta amarilla, calibre 14.
Disponible:
En Stock
- SKU JU-PG-114-TUB
- Categoria Cableado Estructurado > Canalización > Tubería Metálica CONDUIT / Accesorios
$ 487.60 MXN
Applications
Thick Wall conduit is used for routing electrical wiring, both exposed and concealed, above ceilings or under raised floors. It is used in hospitals, industries, computer rooms, and isolation panels, among others.
Featured Characteristics
- Type: Thick Wall (Yellow Label), threaded and with 1 coupling
- Diameter: 1-1/4' (32 mm)
- Length: 3 m
- Unit weight: 5.63 Kg
- Gauge: 14
- Wall thickness: 1.90 mm
- External diameter: 40.50 mm
- Internal diameter: 36.70 mm
- Includes: 1 coupling
Notes
- Note 1: Recommended equipment for indoor use. Outdoor installations must be in areas with no salinity, no corrosion, and very low relative humidity (less than 40%). Not recommended for underground installations.
- Note 2: Unit of sale: 1 tube of 3 meters each.
Applications
Thick Wall conduit is used for routing electrical wiring, both exposed and concealed, above ceilings or under raised floors. It is used in hospitals, industries, computer rooms, and isolation panels, among others.
Featured Characteristics
- Type: Thick Wall (Yellow Label), threaded and with 1 coupling
- Diameter: 1-1/4' (32 mm)
- Length: 3 m
- Unit weight: 5.63 Kg
- Gauge: 14
- Wall thickness: 1.90 mm
- External diameter: 40.50 mm
- Internal diameter: 36.70 mm
- Includes: 1 coupling
Notes
- Note 1: Recommended equipment for indoor use. Outdoor installations must be in areas with no salinity, no corrosion, and very low relative humidity (less than 40%). Not recommended for underground installations.
- Note 2: Unit of sale: 1 tube of 3 meters each.
