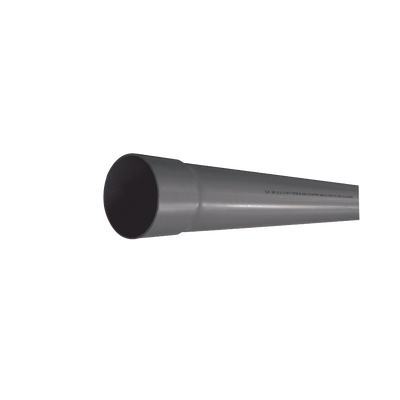

Tubo Conduit Cédula 40 de 1 (27 mm).

Applications

This pipe is specially designed for the conduction of electrical cables, in uses such as electrical, industrial or domestic installations. In electrical installations of underground systems, embedded in concrete or directly buried, or in systems exposed to the elements to house and protect the cables that carry electrical energy, for use in shopping centers, industrial warehouses, etc.

Schedule 40 conduit pipe is made from a non-plasticized polyvinyl chloride (PVC) compound, with a classification cell of 12454 according to NMX-E-031.

The union of these pipes is carried out by means of the direct interconnection of a thermoformed ferrule integrated into the pipe, or by means of an injected PVC coupling that facilitates its insertion. Its cementing union system forms a homogeneous assembly that develops maximum resistance and a hermetic seal.

This pipe fully complies with the UL 651 specification standard, as endorsed by its certification for electrical installations operating at a maximum temperature of 60 °C.

Compliance with all of the above fully guarantees the correct functioning of the product, as well as its useful life. It meets the highest safety standards and thanks to its dielectric rigidity it is a good insulator in installations, preventing short circuits and/or leaks of electrical potential from the cable to the duct.

Characteristics

• Self-extinguishing
• Nominal Diameter: 1' (27 mm)
• Average outer diameter:
  • Minimum: 33.15 mm (1.30')
  • Maximum: 33.66 mm (1.32')
• Minimum wall thickness: 3.38 mm (0.13')
• Ferrule entry diameter:
  • Minimum: 33.53 mm (1.32')
  • Maximum: 34.04 mm (1.34')
• Ferrule terminal diameter:
  • Minimum: 33.02 mm (1.30')
  • Maximum: 33.53 mm (1.32')
• Minimum ferrule length: 22.22 mm (0.87 in)

NOTE: The length of the pipes, in both types, is 3,000 mm ± 0.5% (15 mm).
