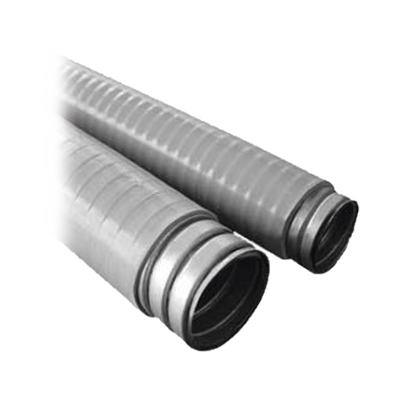

Tubo flexible Liquidtight de 1/2" (13 mm). Acero + PVC. Rollo de 50 metros.
Tubo flexible Liquidtight de 1/2" (13 mm). Acero + PVC. Rollo de 50 metros.
Disponible:
En Stock
- SKU ANC-COT-12
- Categoria Cableado Estructurado > Canalización > Tubería Metálica CONDUIT / Accesorios
$ 2,949.83 MXN
Physical Characteristics
- Nominal diameter: 1/2' (13 mm)
- Meters per roll: 50 meters
- Weight per roll: 12 Kg
- Manufacturer's key: COT 12
Outstanding Features
- Pre-galvanized, roll-formed and interlocked steel core for optimal resistance
- Co-extruded and thermoformed PVC jacket that follows the corrugations of the core, providing greater flexibility and economy
- The PVC thickness at the crest and the inner diameter are similar to traditional HELITITE, allowing the use of standard ANCLO fittings type HLR and HLC in both
- NEMA 4 or IP-65 Level
Applications
Liquidtight conduit is used for both exposed and concealed electrical wiring runs above false ceilings or raised floors. It is recommended for the installation of machinery and other applications where it is necessary to absorb vibrations and movements, such as in hospitals, industries, computer rooms, and isolation panels, among others.
Physical Characteristics
- Nominal diameter: 1/2' (13 mm)
- Meters per roll: 50 meters
- Weight per roll: 12 Kg
- Manufacturer's key: COT 12
Outstanding Features
- Pre-galvanized, roll-formed and interlocked steel core for optimal resistance
- Co-extruded and thermoformed PVC jacket that follows the corrugations of the core, providing greater flexibility and economy
- The PVC thickness at the crest and the inner diameter are similar to traditional HELITITE, allowing the use of standard ANCLO fittings type HLR and HLC in both
- NEMA 4 or IP-65 Level
Applications
Liquidtight conduit is used for both exposed and concealed electrical wiring runs above false ceilings or raised floors. It is recommended for the installation of machinery and other applications where it is necessary to absorb vibrations and movements, such as in hospitals, industries, computer rooms, and isolation panels, among others.
