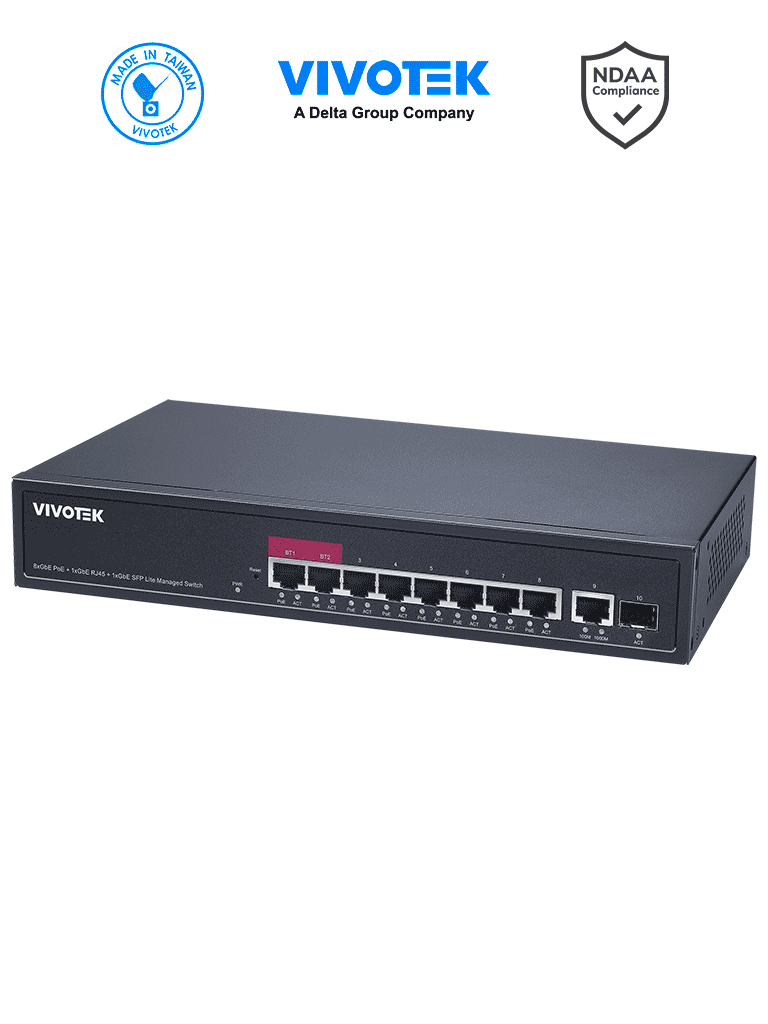

VIVOTEK AW-GEL-105A-110 - Managed PoE Switch, 8 Gigabit PoE Ports, 1 GE Port, 1 SFP Port, 20 Gbps, 30W per Port, 110W Total, Extended PoE 250m
VIVOTEK AW-GEL-105A-110 - Managed PoE Switch, 8 Gigabit PoE Ports, 1 GE Port, 1 SFP Port, 20 Gbps, 30W per Port, 110W Total, Extended PoE 250m
Disponible:
En Stock
- SKU AW-GEL-105A-110
$ 4,165.00 MXN
General information
The AW-GEL-105A-110 switch is a network solution designed for demanding environments that require stable, secure, and high-speed data transmission. Equipped with PoE+ technology, it is ideal for IP video surveillance applications and mission-critical security systems.
Main features
- Gigabit Ethernet
- Hybrid 802.3 at/bt
- 250M PoE Extension
Technical specifications
- PoE Ethernet Port: 8xGbE PoE
- Ethernet Uplink Port: 1xGbE RJ45 + 1xGbE SFP
- Total Ports: 10
- Max PoE Output Power: Port 1,2 at 90W Port 3-8 at 30W
- PoE Power Budget: 110W
- PoE Standard: 802.3 af/at/bt
- Surge Protection: 4 kV
- Switching Bandwidth: 20 Gbps
- Buffer Memory: 1.5 Mb
- Forwarding Rate: 14.88 Mpps
- MAC Address: 4K
- Jumbo Frames: 9216 bytes
- Max Power Consumption: 120W
- Operating Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
- Operating Humidity: 10 ~ 90 % RH
- Power Input: 100 V ~ 240 V
- Frequency: 50 ~ 60 Hz
Includes
- Power cable
- Quick guide
- Rack mount kit
Download datasheets/manuals
