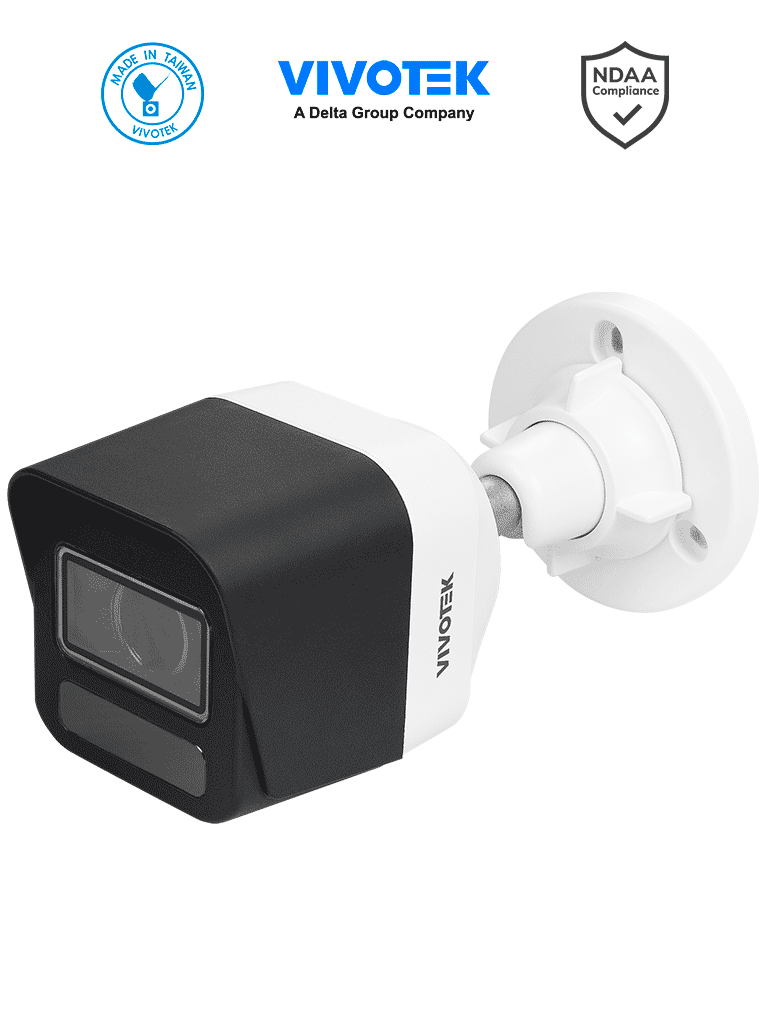

VIVOTEK IB9380-HTV-V2 - Cámara IP bullet exterior 5 MP, lente varifocal 2.7-13.5mm, Smart IR 30m, WDR Pro, Búsqueda Inteligente (IA), Micrófono integrado, Ciberseguridad Trend Micro IP66, IK10, NDAA, ONVIF
- SKU IB9380-HTV-V2
- Categoria CCTV Industrial > Videovigilancia > Cámaras IP > Bullet, Cámaras IP
General Information
The IB9380-HTV-V2 cameras represent a versatile and reliable series, designed for modern surveillance needs. Combining cutting-edge technology, durable construction, and intelligent features, these cameras offer superior performance in various environments.
Main Features
- People and vehicle detection with Vision Object Analytics
- Accurate alarm with Smart VCA
- Built-in IR with a range of up to 30m and Smart IR
- Metal housing with IK10 certification
- Cyber protection with Trend Micro IoT Security
Technical Specifications
- Image Sensor: 1/2.7" Progressive CMOS
- Max. Resolution: 2880x1616 (5MP)
- Lens Type: Motorized
- Focal Length: f = 2.7 ~ 13.5mm
- Aperture: F1.6 ~ F3.1
- Field of View: 111.0° ~ 32.2° (Horizontal) 57.0° ~ 18.0° (Vertical) 136.0° ~ 37.0° (Diagonal)
- Shutter Time: 1/5 sec to 1/32,000 sec
- WDR Technology: WDR Pro
- Illuminators: IR up to 30 meters with Smart IR
- Minimum Illumination: 0.04 lux @ F1.6 (color)
- Storage: Max. 1TB
- Compression: H.265, H.264, MJPEG
- Max. Frame Rate: 30 fps @ 2880x1616
- Audio Capability: Two-way audio
- ONVIF: Profile G, S, T
- VCA Analytics: Intrusion Detection, Loitering Detection, Line Crossing Detection
- Power Input: 802.3af PoE Class 3 DC 12V
- Power Consumption: PoE Max. 7.77W
- Dimensions: Ø 91.0 x 195 mm
- Weight: 757 g
- Certifications: IK10 (IEC 62262)*, IP66, IP67 (IEC 60529)*
- Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Includes
- Quick Installation Guide
- Alignment Sticker
- Screw Pack
Sharp Details with 5MP Resolution
Capture sharp, detailed images without frame loss with 5MP resolution and 30 FPS recording. High-resolution video offers better visibility and stronger evidence for investigations.
Clear Vision in High Contrast Conditions
Thanks to WDR Pro, the camera delivers sharp, high-quality images, ensuring precise detail capture in difficult high-contrast conditions for comprehensive surveillance.
Balanced IR at Night
VIVOTEK's Smart IR technology optimizes infrared intensity to ensure optimal exposure and enable detail capture in low-light conditions. With an effective IR range of up to 30m, it provides reliable night vision.
IK10 Certified Metal Housing
The IK10 certified metal housing protects the camera against vandalism and maintains its color for a sleek and durable finish.
Focus on People and Vehicles
Detect and distinguish people and vehicles easily thanks to Vision Object Analytics, designed to prioritize what truly matters.
Accurate Alarm with Smart VCA
VIVOTEK Smart VCA offers precise object tracking, detects specific abnormal behaviors, and provides detailed video analytics for targeted monitoring and real-time alarms.
Protected Operation with End-to-End Security
VIVOTEK protects your surveillance system with a layered security system. From device-level protection with Trend Micro, secure boot, and signed firmware to cloud-level protections like AES-256 encryption, TLS 1.2, and multi-factor authentication, your data and access are fully protected across the entire ecosystem.
Download Data Sheets/Manuals
