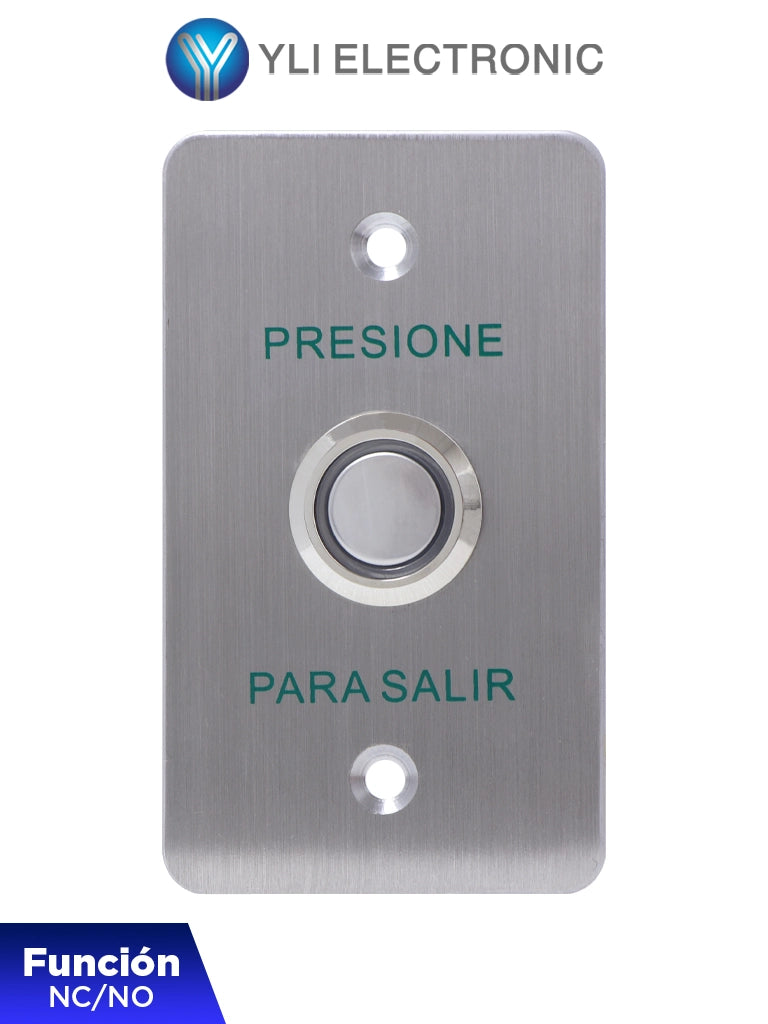

YLI PBK814BLED - Mechanical Exit Button, Blue LED Indicator, Stainless Steel, 12 VDC, NC/NO Function
- SKU PBK-814B(LED)
General Information
The YLI PBK814BLED Mechanical Exit Button is a reliable and versatile solution for activating or deactivating functions in access control systems. With its robust and elegant stainless steel design, it allows quick and precise operation to open electric or magnetic locks with ease. Compatible with access control systems, this button is a practical and durable option for any environment that requires security and ease in access control.
Features and Specifications
- Output Contact: NO / NC / COM, compatible with electric and magnetic locks
- Contact Rating: 3A @ 36VDC Max
- Panel Material: Stainless steel with wiredrawing finish
- LED Indicator: Illuminates blue with a 12VDC input
- Durability: Tested to 500,000 cycles for high mechanical resistance
- Compatibility: Ideal for hollow doors and access control systems
- Operating Conditions: Temperature from 10°C to 55°C and 0-95% relative humidity
- Dimensions: 86 x 50 x 40 (mm)
- Weight: 0.18 kg
Frequently Asked Questions
What wall mount bracket is the PBK814BLED button compatible with, and what considerations should I have when installing it?
The button is compatible with the MBB800AM bracket, with TVC code: 76017. However, it is important to consider that the bracket has a hole in the back, where it adheres to the wall. Due to this design, a part of the button, where the connections are located, protrudes from the bracket. Therefore, if you decide to mount the bracket flush with the wall, it will be necessary to make a hole to allow access to the wiring. Make sure to make this adjustment to ensure a correct and functional installation of the button.
Does the PBK814BLED button need a power source to operate?
No, the PBK814BLED button can operate without the need for a power source. The connection to a 12V source is only to illuminate the LED indicator. However, this does not affect its main function as an exit button, which will continue to operate normally without power.
